SHOWTEC LED Octostrip Set MKII 100 cm Section Control

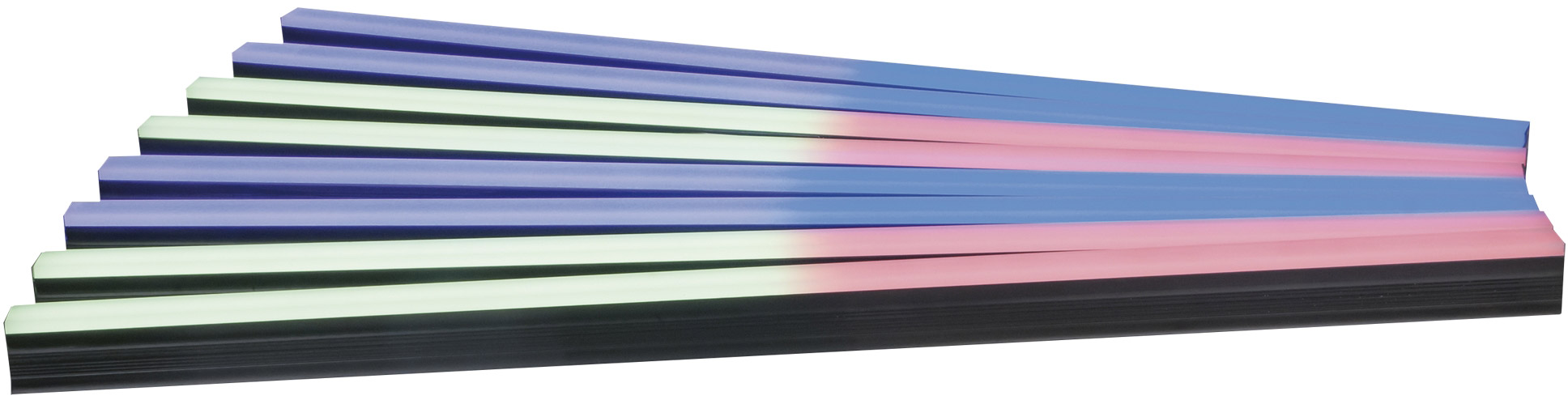

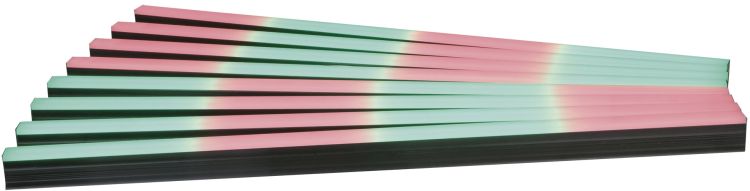

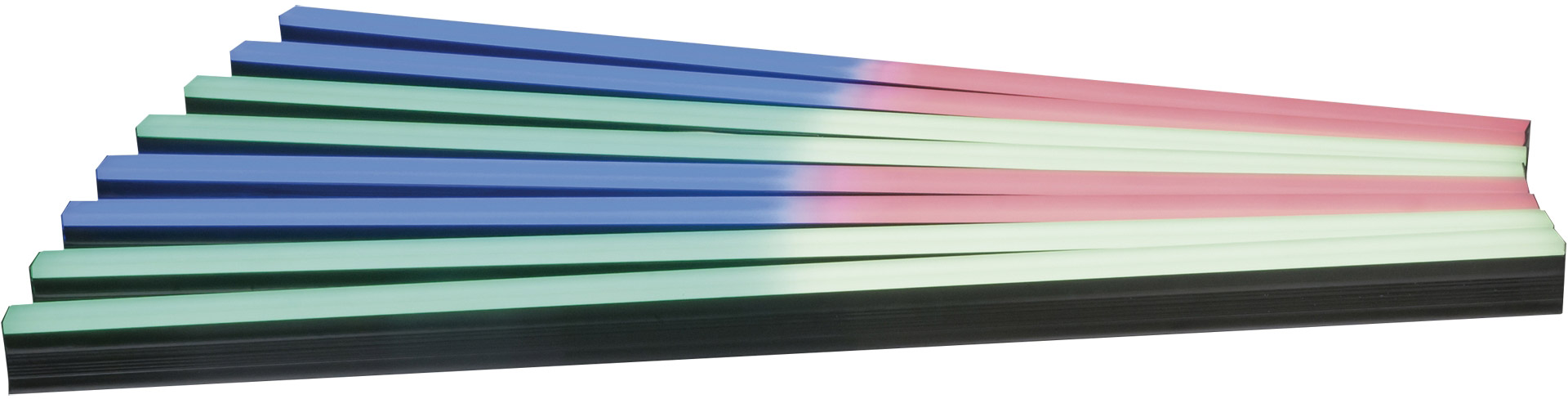

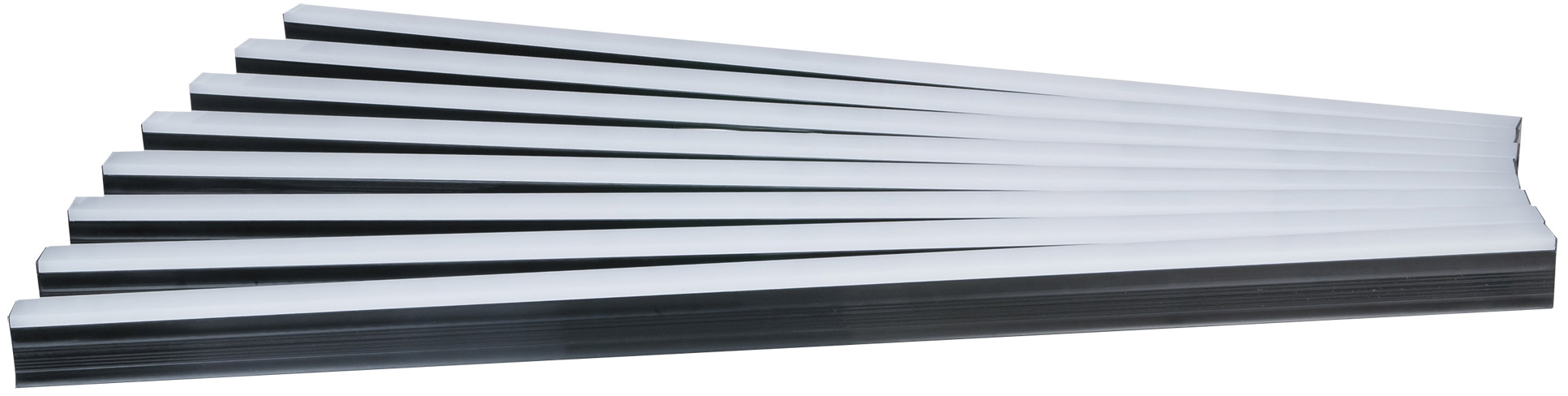

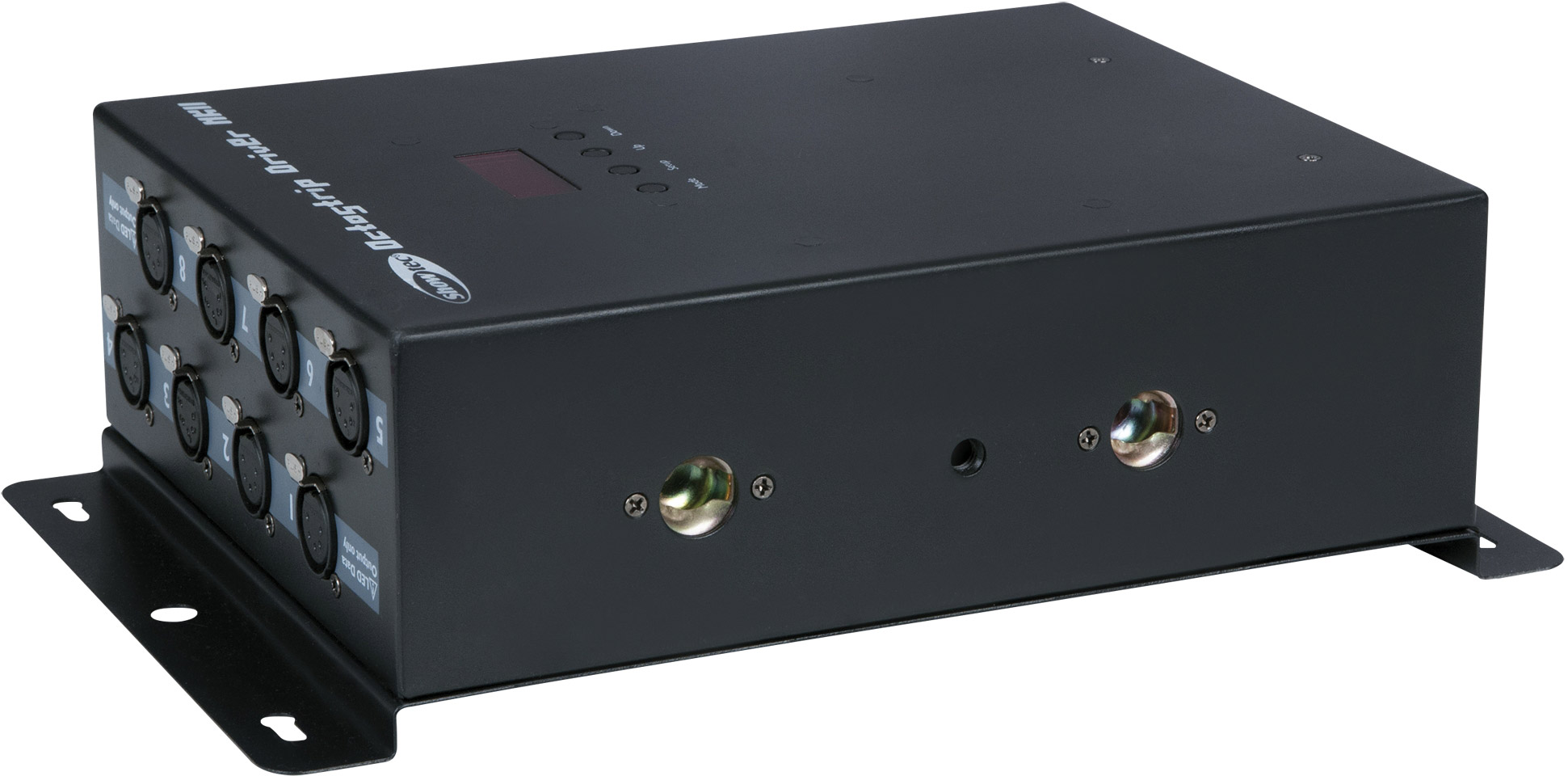

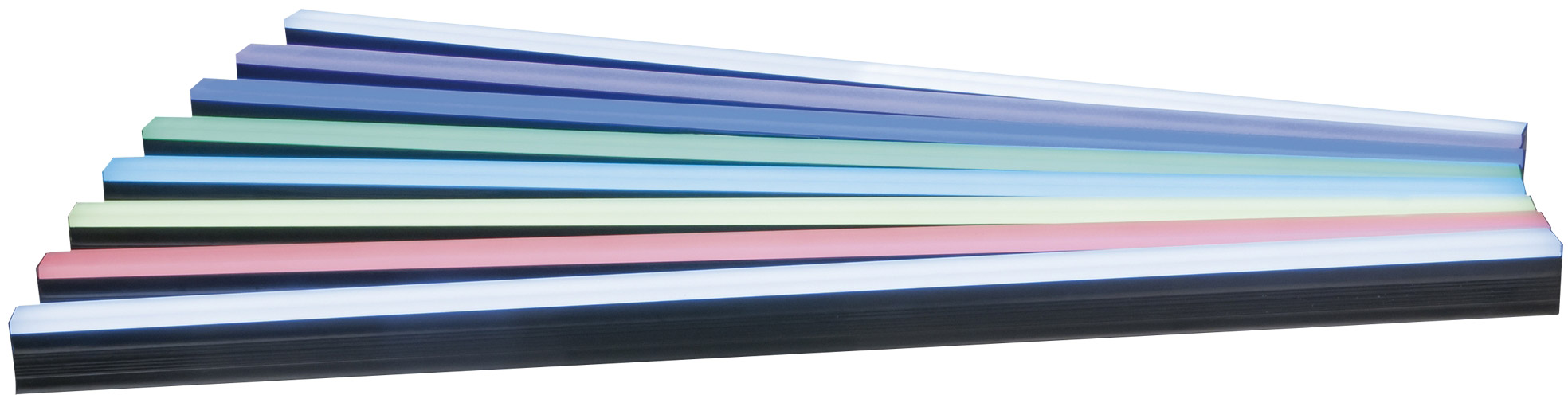

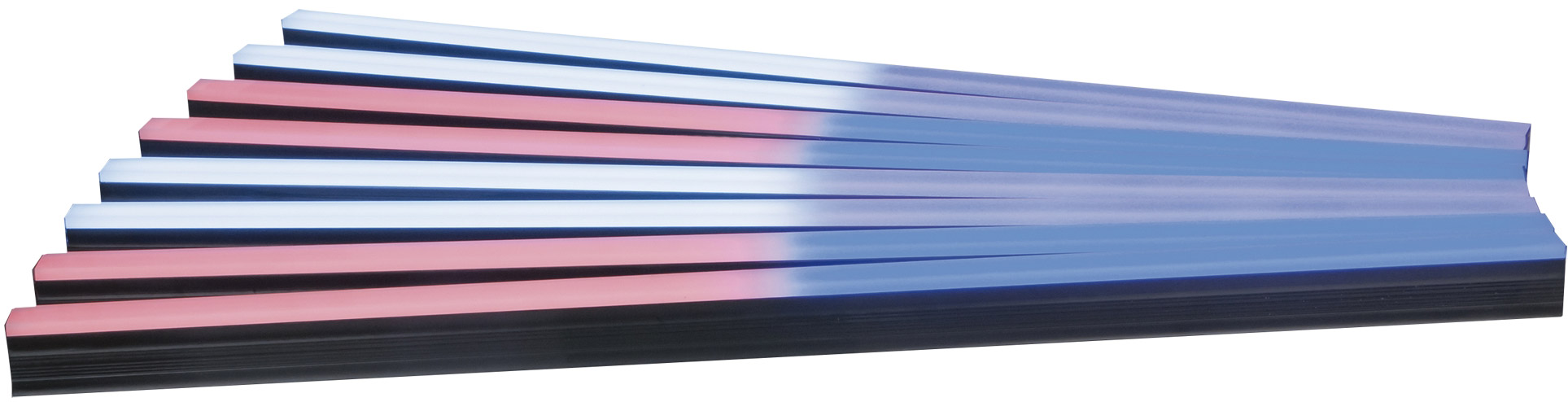

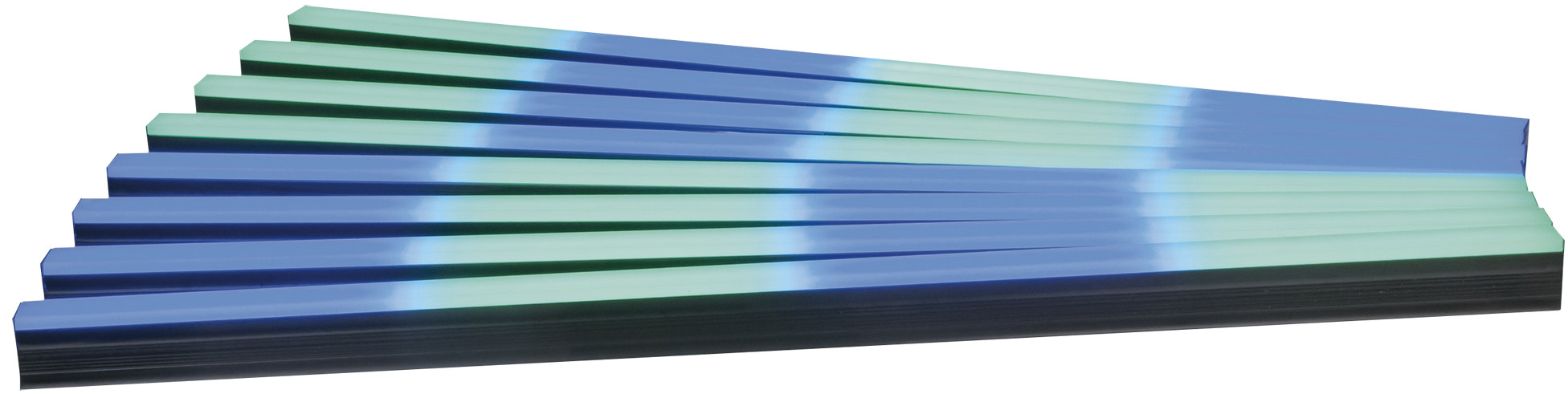

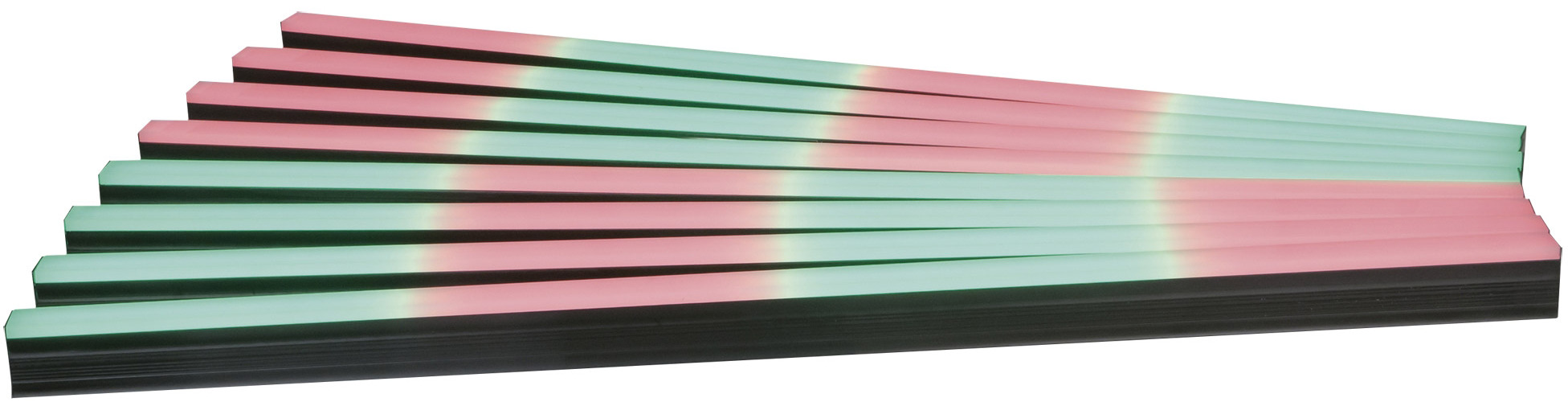

The LED Octostrip MKII is the successor of the popular Octostrip. It is a complete plug-and-play set; consisting of 8 LED strips, a controller and eight 5-metre long XLR extension cables. The new LED Octostrip MKII can control each strip’s 8 individual RGB sections, along with the corresponding dimmer and strobe settings. The controller supports Art-Net protocol, which facilitates the use of device while operating in the full RGB mode (192-Ch mode). It has updated colour presets and built-in colour flows for use of horizontal and vertical directions which are accessible via DMX (in 6-Ch, 8-Ch, 14-Ch, 24-Ch, 26-Ch, 50CH, 96-Ch, 112-Ch, 192-Ch, 208-Ch channel modes). Because of the exact same hardware design It is possible to combine the Octostrip MKI to the new Octostrip MKII in one stage. However, in such case, it is not advisable to operate the old and the new version of the device in Auto mode, as the built-in programs differ per version. The 6-Ch mode has the same DMX channel settings to control both sets in one setup.Technical data:

Light Source Type:	LED
Light Source Power:	25 W
LED Colour Type:	RGB
Dimmer:	0-100 %
Strobe:	0-20 Hz
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	90 W
Power Connector In:	Power Pro Blue
Power Connector Out:	Power Pro Grey
DMX Connector:	XLR 3P In/Out
DMX Connector In:	XLR 3P
DMX Connector Out:	XLR 3P
Data Connector:	etherCON In/Out
Data Connector In:	etherCON
Data Connector Out:	etherCON
Height (mm):	1025 mm
Width (mm):	30 mm
Depth (mm):	50 mm

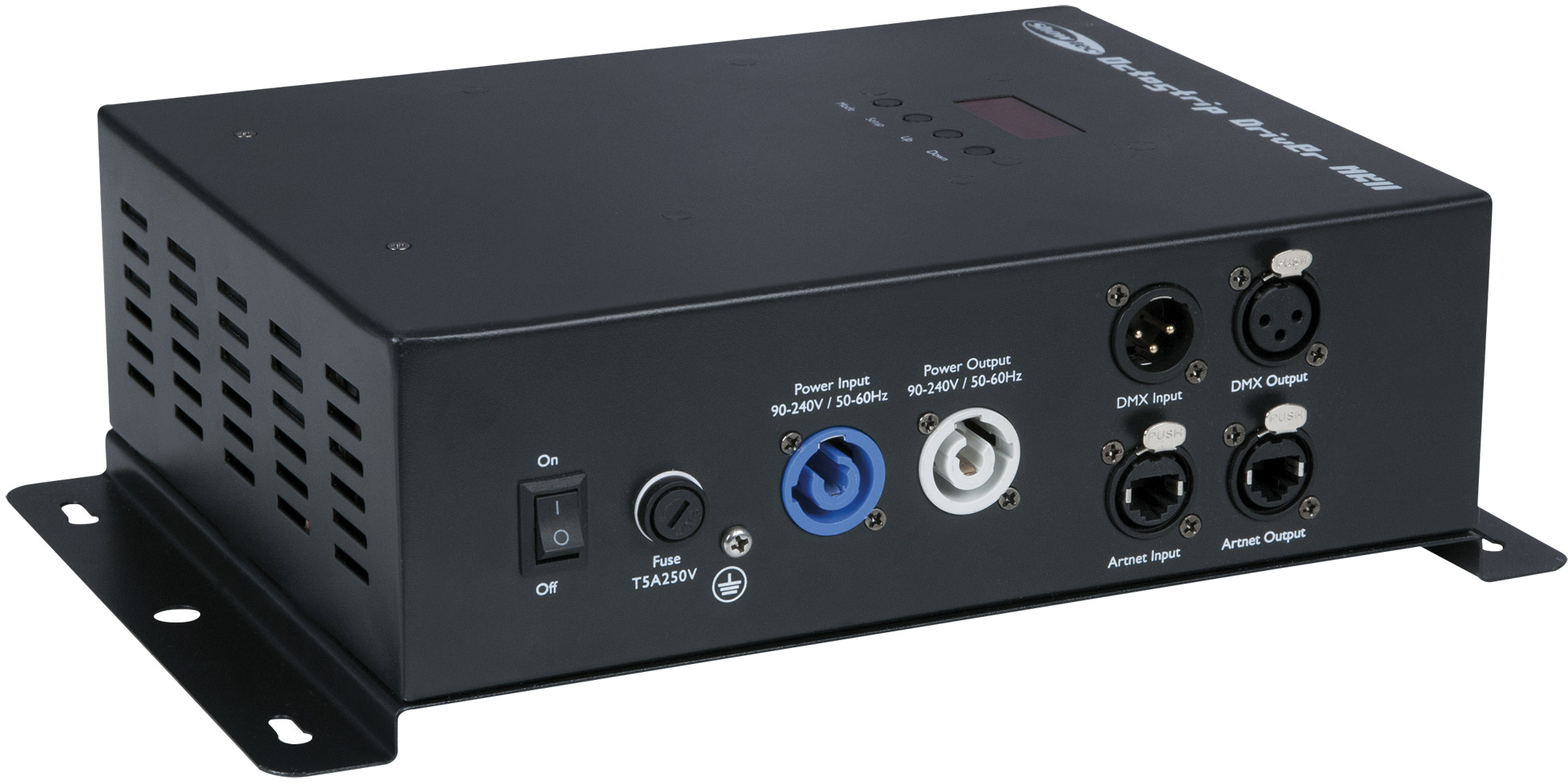

Controller Height:	92 mm
Controller Width:	200 mm
Controller Length:	315 mm
Weight:	16.8 kg
Controller Weight:	2.5 kg
IP Rating:	IP20 (indoor use only)
Housing:	Aluminium die-cast
Colour:	Black
Cooling:	Convection/Axial fan
Thread:	M10
Mounting Options:	Bracket / Clamp / Quick-Lock / Sliding Profile
Safety Attachment:	Yes
Maximum Ambient Temperature:	40 °C
Included Cables:	Power Pro Cable / XLR 5P 5m
Included Accessories:	Controller
Included Rigging:	Quick-Lock Bracket
Control Mode:	Auto / Built-in Program / Manual / Master Slave / Sound
DMX Channels:	6 / 8 / 14 / 24 / 26 / 50 / 192 / 208
Protocols:	Art-Net / DMX
Display:	LCD
Zone Control (Sections):	8
