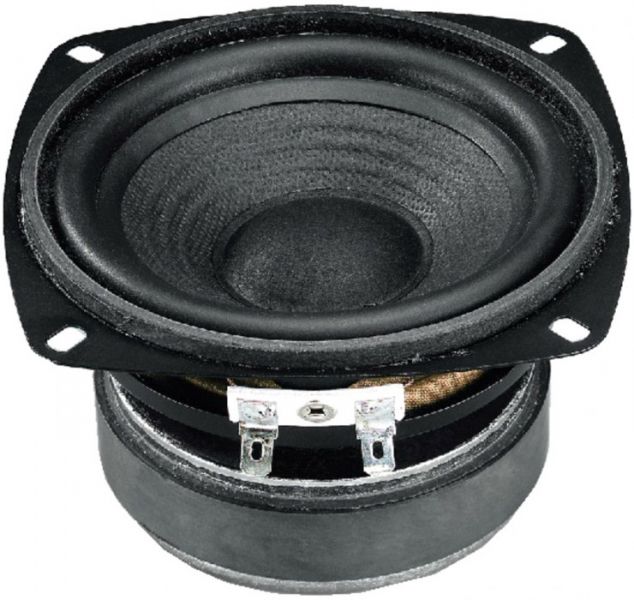

MONACOR SP-100/8 Hi-fi bass-midrange speaker, 30 W, 8 O
€31.00 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 250105975
EAN: 4007754138849
MPN: 0103780
Hi-fi bass-midrange speaker, 30 W, 8 O Robust paper cone High-quality aluminium coil... more
All information about the product:
"MONACOR SP-100/8 Hi-fi bass-midrange speaker, 30 W, 8 O"
Hi-fi bass-midrange speaker, 30 W, 8 O
- Robust paper cone
- High-quality aluminium coil
- Drilled pole core
- Rubber surround
- Excellent radiation and transient response
| Impedance (Z): | 8 O |

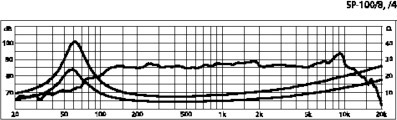

| Frequency range: | f3-7,000 Hz |
| Resonant frequency (fs): | 61 Hz |
| Power rating (RMS): | 30 W |
| Peak music power output (MAX): | 60 W |
| Sensitivity: | 88 dB/W/m |
| Suspension compl. (Cms): | 1.23 mm/N |
| Moving mass (Mms): | 5.5 g |
| Mech. Q factor (Qms): | 2.28 |
| Electr. Q factor (Qes): | 0.44 |
| Total Q factor (Qts): | 0.37 |
| Equivalent volume (Vas): | 4.7 l |
| DC resistance (Re): | 6.5 O |
| Force factor (BxL): | 5.50 Tm |
| Voice coil induct. (Le): | 0.4 mH |
| Voice coil diameter: | Ø 25 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 2.5 mm |
| Eff. cone area (Sd): | 52 cm2 |
| Magnet weight: | 280 g |
| Magnet diameter: | Ø 80 mm |

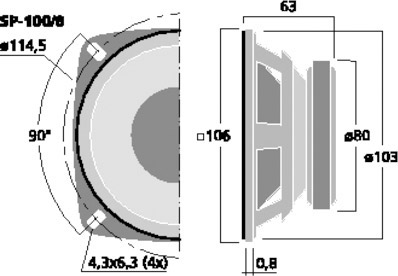

| Mounting cutout: | Ø 103 mm |
| Mounting depth: | 62.2 mm |
| Mounting hole diameter: | Ø 114.5 mm |
| Hole spacing X-axis: | 81 mm |
| Hole spacing Y-axis: | 81 mm |
| Dimensions: | 106 x 106 x 63 mm |
| Outside diameter: | Ø 127 mm |
| Width: | 106 mm |
| Height: | 106 mm |
| Depth: | 63 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 0.79 kg |
| Packing unit: | 1 |
| Type of speaker: | 4" |
| Packing dimensions (W x H x L): | 0.11 x 0.07 x 0.11 m |
| Gross weight: | 0.835 kg |
| Net weight: | 0.795 kg |
