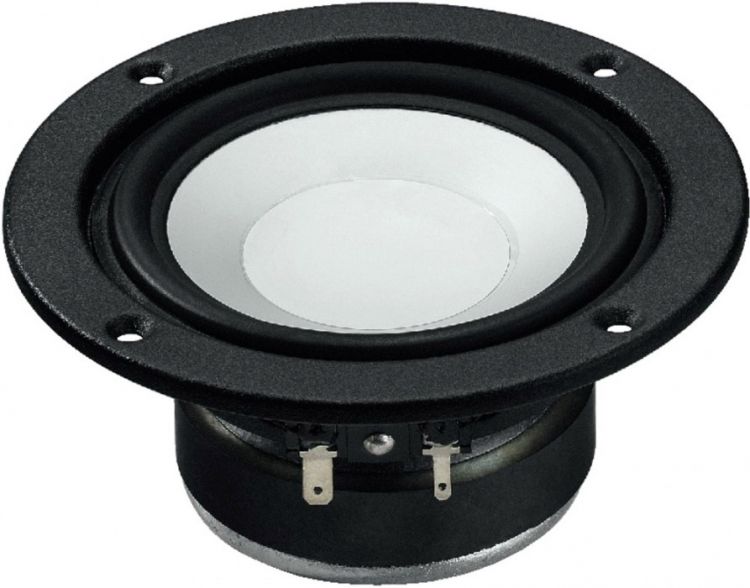

SPH-100AL High-tech midrange speaker, 80WMAX, 8Ω
€43.00 *
incl. tax,
plus shipping costs
Availability:
Currently not available
Currently not available
Item number: 250105980
EAN: 4007754143843
MPN: 0103810
High-tech midrange speaker, 80W MAX , 8Ω... more
All information about the product:
"SPH-100AL High-tech midrange speaker, 80WMAX, 8Ω"
High-tech midrange speaker, 80WMAX, 8Ω
Made in Germany with cone and dust cap completely of aluminium, special design for particular reinforcing, the extra high cone stability ensures a maximum of fine dynamics. If used as a single midrange speaker and particularly in D'Appolito arrangements, this speaker is of absolute high-end quality. ILMAG 12

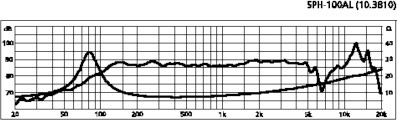

+ linear frequency response
Made in Germany with cone and dust cap completely of aluminium, special design for particular reinforcing, the extra high cone stability ensures a maximum of fine dynamics. If used as a single midrange speaker and particularly in D'Appolito arrangements, this speaker is of absolute high-end quality. ILMAG 12
+ linear frequency response
+ stable cones
+ good price-performance ratio
| Impedance (Z): | 8Ω |
| Resonant frequency (fs): | 80Hz |
| Max. frequency range: | fx-5,000Hz |
| Music power: | 80WMAX/120WMAX (> 120Hz) |
| Power rating (P): | 40WRMS |
| SPL (1W/1m): | 87dB |
| Suspension compl. (Cms): | 0.79mm/N |
| Moving mass (Mms): | 4.9g |
| Mech. Q factor (Qms): | 3.05 |
| Electr. Q factor (Qes): | 0.67 |
| Total Q factor (Qts): | 0.55 |
| Equivalent volume (Vas): | 3.2 l |
| DC resistance (Re): | 6.2Ω |
| Force factor (BxL): | 4.81Tm |
| Voice coil induct. (Le): | 0.3mH |
| Voice coil diameter: | 25mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ±1.5mm |
| Eff. cone area (Sd): | 55cm2 |
| Magnet weight: | 250g |
| Weight: | 0.65kg |
