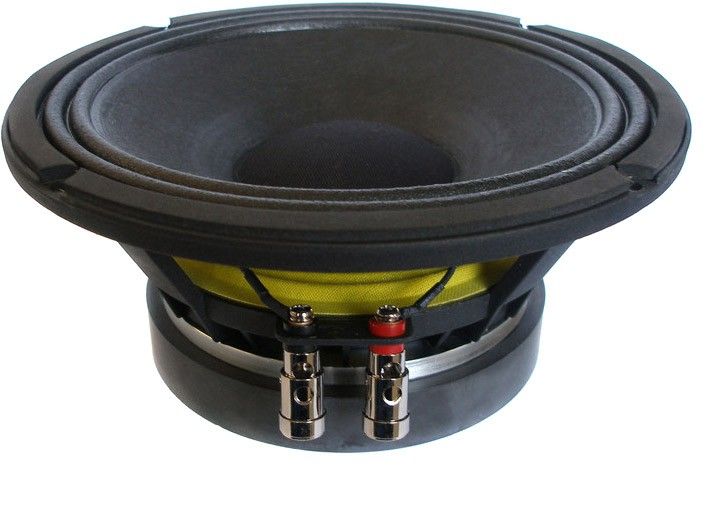

BMS 8 C 250 H - 8" Coaxial Speaker 200 W + 80 W 16 Ohms
€253.17 *
Availability:
Currently not available
Currently not available
Item number: 500120195
EAN: 4049521164019
MPN: BMS8C250H
8" Coaxial Speaker 200 W + 80 W 16 Ohms Technical data: Product type: Loudspeaker Chassis... more
All information about the product:
"BMS 8 C 250 H - 8" Coaxial Speaker 200 W + 80 W 16 Ohms"
8" Coaxial Speaker 200 W + 80 W 16 OhmsTechnical data:
Woofer characteristics
Thiele & Small Parameter
HF Driver characteristics
| Product type: | Loudspeaker Chassis |
| Type: | coaxial |
| Loudspeaker dimensions: | 8 " |
| Loudspeaker dimensions (mm): | 203 mm |
| Overall diameter: | 205 mm |
| Pitch Circle Diameter: | 196 mm |
| Cut- out Measurement: | 182 mm |
| Mounting holes: | 4 |
| Diameter of fixing holes: | 6 mm |
| Total depth: | 111 mm |
| Weight: | 3 kg |
| Nominal impedance: | 16 Ohm(s) |
| RMS: | 200 W |
| Sensitivity (1 W / 1 m): | 93 dB |
| Frequency response: | 70 - 20000 Hz |
| Woofer voice coil: | 2 " |
| Woofer voice coil (mm): | 51 mm |
| Voice Coil Material Woofer: | copper |
| Woofer magnet: | Ferrite |
| Magnetic gap depth Woofer: | 6.5 mm |
| Fs (Resonance Frequency): | 79.1 Hz |
| Re (DC resistance): | 5.4 Ohm(s) |
| Qms (mechanical quality): | 4.85 |
| Le (inductance of the voice coil): | 0.48 mH |
| Qes (electrical quality): | 0.61 |
| Qts (overall quality): | 0.52 |
| Vas (equivalent volume): | 10.18 l |
| Mms (moving mass): | 18.3 g |
| BL (power factor): | 9.95 T/m |
| Xmax (maximum displacement): | 4.25 mm |
| Cms (elasticity of the suspension): | 0.18 mm/N |
| Sd (membrane area): | 201 cm² |
| HF driver voice coil: | 1.75 " |
| HF driver voice coil: | 44.4 mm |
| Nominal Impedance HF driver: | 8 Ohm(s) |
| Nominal Load HF driver: | 80 W |
| Maximum Load HF driver: | 300 W |
| Sensitivity HF driver (1 W / 1 m): | 109 dB |
| Frequency range HF driver: | 1000 - 20000 Hz |
| recommended crossover frequency HF driver: | 1500 Hz |
| Voice Coil Carrier HF driver: | Kapton |
| Diaphragm material HF driver: | Polyester |
| Dispersion (H x V): | 90 ° |
