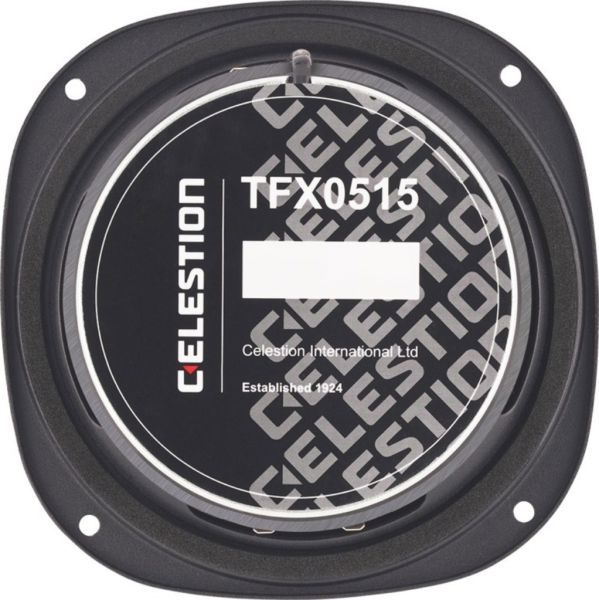

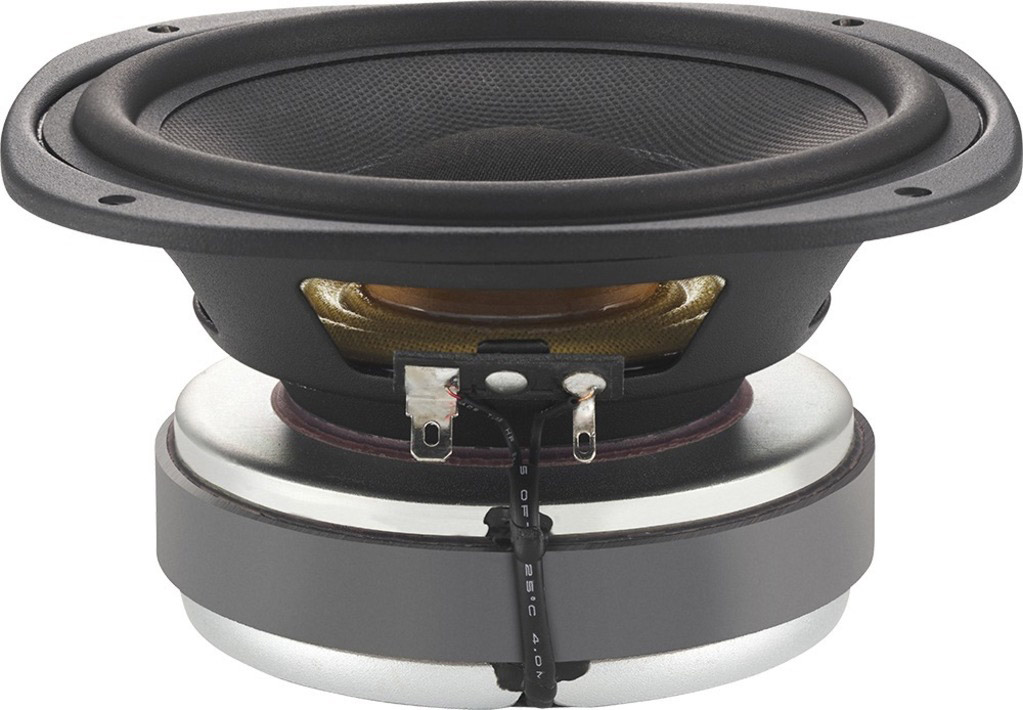

Celestion TFX0515/8 PA coaxial speaker, 150 W, 8 Ω

€56.71 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Please choose a variant.
Item number: 250141500
EAN: 0739894644754
MPN: 1001131
Celestion is one of the finest-sounding names in the world of speakers. The speakers of the... more
All information about the product:
"Celestion TFX0515/8 PA coaxial speaker, 150 W, 8 Ω"
Celestion is one of the finest-sounding names in the world of speakers.
The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
PA coaxial speaker, 150 W, 8 Ω
  • 12.7 cm (5") made of extruded steel
  • 25 mm (1") with silk dome and ferrite magnet
  • Nominal radiation angle of tweeter: 110°
Technical data:
Impedance (Z): 8 Ω
Transmission technology: cable
Frequency range: 80-4,000 Hz (bass)

1,400-20,000 Hz (tweeter)

Resonant frequency (fs): 74 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.): 2,200 Hz
Power rating (RMS): 150 W (bass) / 10 W (tweeter)
Peak music power output (MAX): 300 W (bass) / 20 W (tweeter)
SPL: 89 dB (bass) / 96 dB (tweeter)
Suspension compl. (Cms): 0.509 mm/N
Moving mass (Mms): 9.073 g
Mech. Q factor (Qms): 8.293
Electr. Q factor (Qes): 0.503
Total Q factor (Qts): 0.747
Equivalent volume (Vas): 6.5 l
DC resistance (Re): 5.77 Ω
Force factor (BxL): 6.96 Tm
Voice coil induct. (Le): 0.363 mH
Voice coil diameter: Ø 38 mm (bass) / Ø 25 mm (tweeter)
Voice coil winding height: 10.5 mm
Voice coil material: copper wire
Voice coil former: polyimide
Linear excursion (XMAX): 3.75 mm
Eff. cone area (Sd): 95 cm2
Magnet weight: 0.65 kg
Mounting cutout: Ø 116 mm
Mounting depth: 72 mm
Mounting hole diameter: Ø 140 mm
Dimensions: 136 x 151 x 72 mm
Width: 136 mm
Height: 151 mm
Depth: 72 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 1.54 kg
Packing unit: 1
Type of speaker: 5"
Packaging dimensions (W x H x L): 0.185 x 0.102 x 0.185 m
Gross weight: 1.86 kg
Net weight: 1.54 kg
