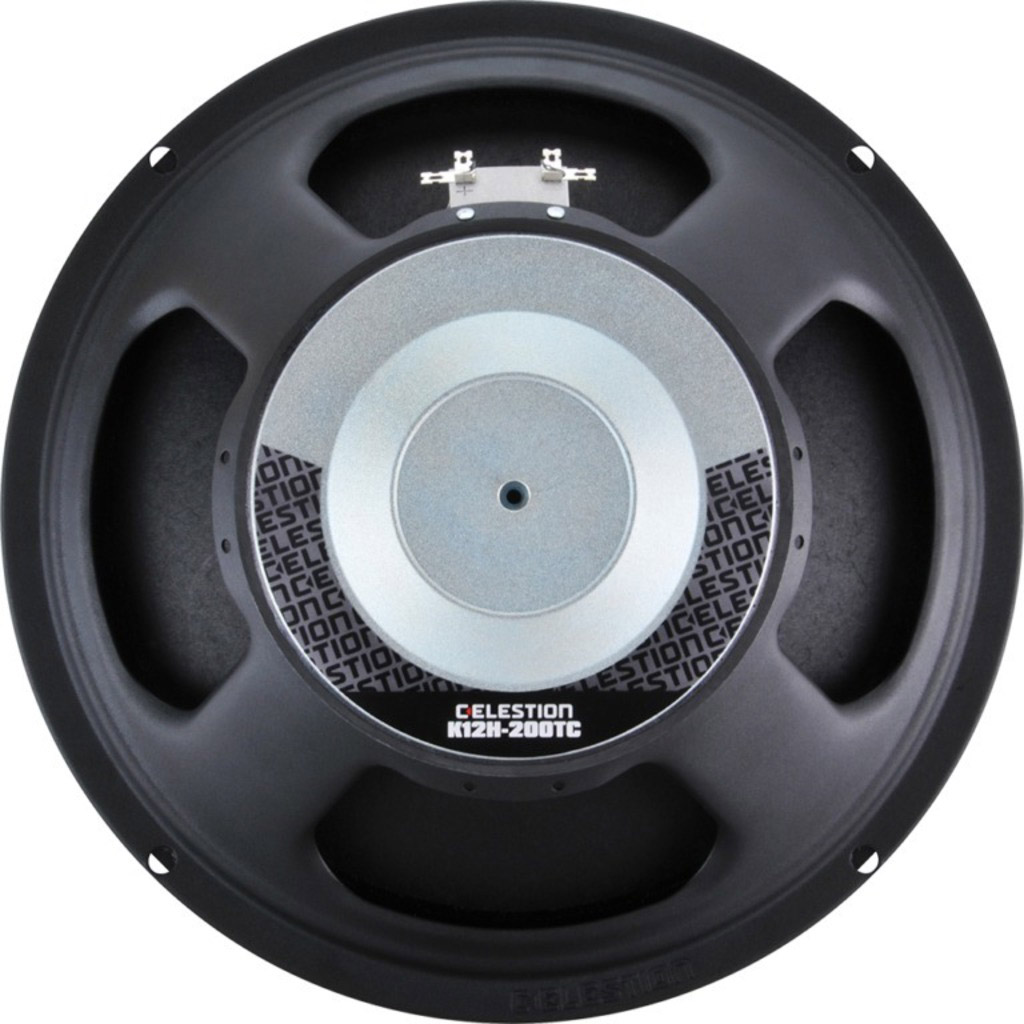

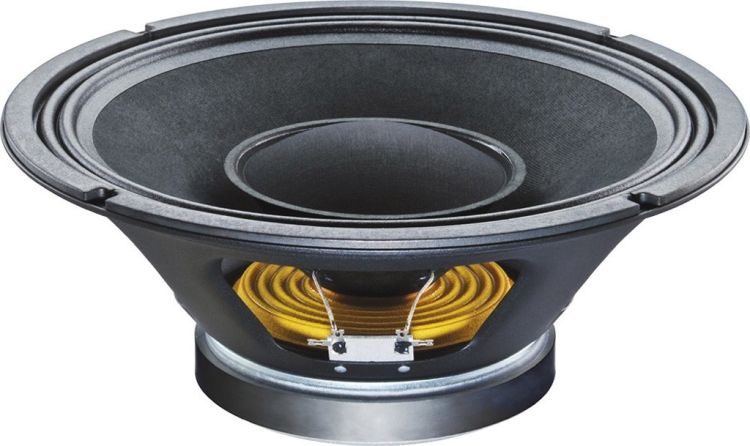

Celestion K12H-200TC/8 PA bass-midrange speaker, 200 W, 8 Ω
€92.44 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 250141490
EAN: 0739894587051
MPN: 1001118
PA bass-midrange speaker, 200 W, 8 Ω 30 cm (12") speaker made of extruded steel Ferrite... more
All information about the product:
"Celestion K12H-200TC/8 PA bass-midrange speaker, 200 W, 8 Ω"
PA bass-midrange speaker, 200 W, 8 Ω
- 30 cm (12") speaker made of extruded steel
- Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone
- Stabilised voice coil system for a detailed reproduction of the midrange
| Impedance (Z): | 8 Ω |
| Transmission technology: | cable |

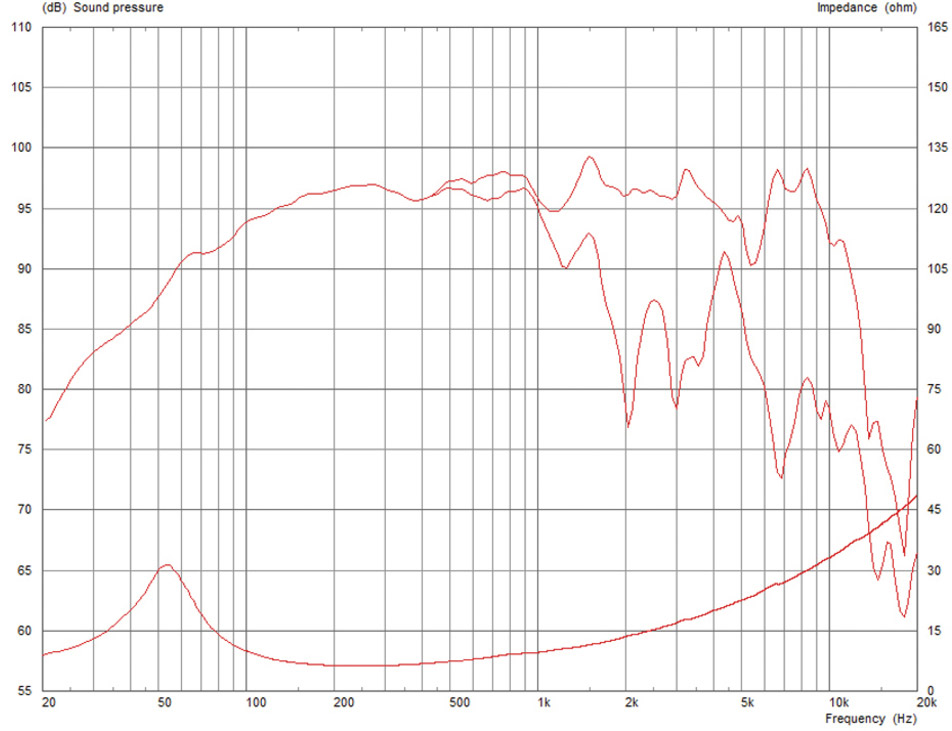

| Frequency range: | 50-5,000 Hz |
| Resonant frequency (fs): | 62.30 Hz |
| Power rating (RMS): | 200 W |
| Peak music power output (MAX): | 400 W |
| SPL: | 98 dB/W/m |
| Suspension compl. (Cms): | 14.63 mm/N |
| Moving mass (Mms): | 40.57 g |
| Mech. Q factor (Qms): | 2.804 |
| Electr. Q factor (Qes): | 0.432 |
| Total Q factor (Qts): | 0.374 |
| Equivalent volume (Vas): | 64.1 l |
| DC resistance (Re): | 5.81 Ω |
| Force factor (BxL): | 14.63 Tm |
| Voice coil induct. (Le): | 0.63 mH |
| Voice coil diameter: | Ø 50 mm |
| Voice coil winding height: | 12 mm |
| Voice coil material: | copper wire |
| Voice coil former: | polyimide |
| Linear excursion (XMAX): | ± 4 mm |
| Eff. cone area (Sd): | 530.93 cm2 |
| Magnet weight: | 1.41 g |
| Mounting cutout: | Ø 283 mm |
| Mounting depth: | 130.3 mm |
| Mounting hole diameter: | Ø 297 mm |
| Dimensions: | Ø 309 mm x 130.3 mm |
| Outside diameter: | Ø 309 mm |
| Width: | Ø 309 mm |
| Height: | Ø 309 mm |
| Depth: | 130.3 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 3.9 kg |
| Packing unit: | 1 |
| Type of speaker: | 12" |
| Packaging dimensions (W x H x L): | 0.33 x 0.15 x 0.33 m |
| Gross weight: | 4.5 kg |
| Net weight: | 3.9 kg |
