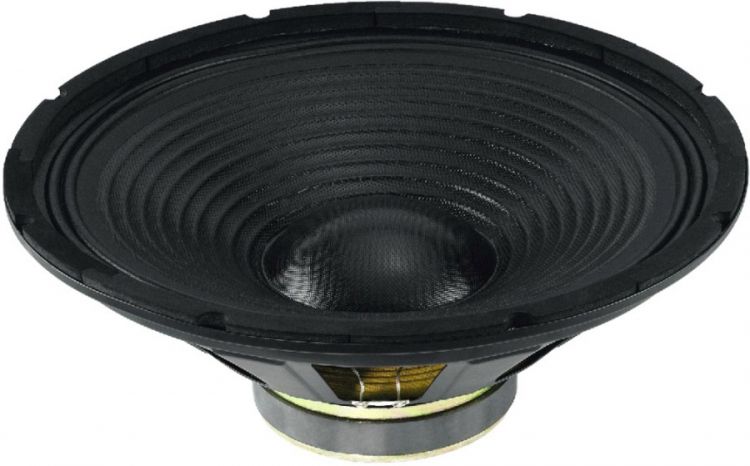

MONACOR SP-382PA Universal bass speaker, 150 W, 8 O
€111.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 250105825
EAN: 4007754134919
MPN: 0103320
Universal bass speaker, 150 W, 8 O For bass applications, also in power speaker systems.... more
All information about the product:
"MONACOR SP-382PA Universal bass speaker, 150 W, 8 O"
Universal bass speaker, 150 W, 8 O
For bass applications, also in power speaker systems.
| Impedance (Z): | 8 O |
| Frequency range: | f3-4,000 Hz |
| Resonant frequency (fs): | 25 Hz |
| Power rating (RMS): | 150 W |
| Peak music power output (MAX): | 300 W |
| Sensitivity: | 94 dB/W/m |
| Suspension compl. (Cms): | 0.26 mm/N |
| Moving mass (Mms): | 73 g |
| Mech. Q factor (Qms): | 3.03 |
| Electr. Q factor (Qes): | 0.99 |
| Total Q factor (Qts): | 0.75 |
| Equivalent volume (Vas): | 270 l |
| DC resistance (Re): | 7.0 O |
| Force factor (BxL): | 10.87 Tm |
| Voice coil induct. (Le): | 0.8 mH |

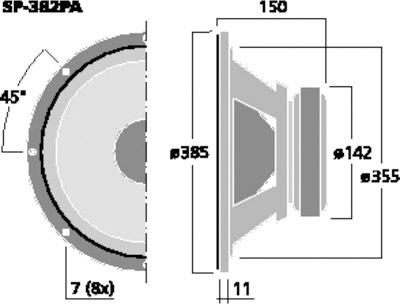

| Voice coil diameter: | Ø 50 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 3.5 mm |
| Eff. cone area (Sd): | 825 cm2 |
| Magnet weight: | 1.2 kg |
| Magnet diameter: | Ø 142 mm |
| Mounting cutout: | Ø 355 mm |
| Mounting depth: | 139 mm |
| Dimensions: | Ø 385 mm x 150 mm |
| Outside diameter: | Ø 385 mm |
| Width: | Ø 385 mm |
| Depth: | 150 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 3.9 kg |
| Packing unit: | 1 |
| Type of speaker: | 15" |
| Packing dimensions (W x H x L): | 0.39 x 0.2 x 0.395 m |
| Gross weight: | 4.3 kg |
| Net weight: | 3.9 kg |
