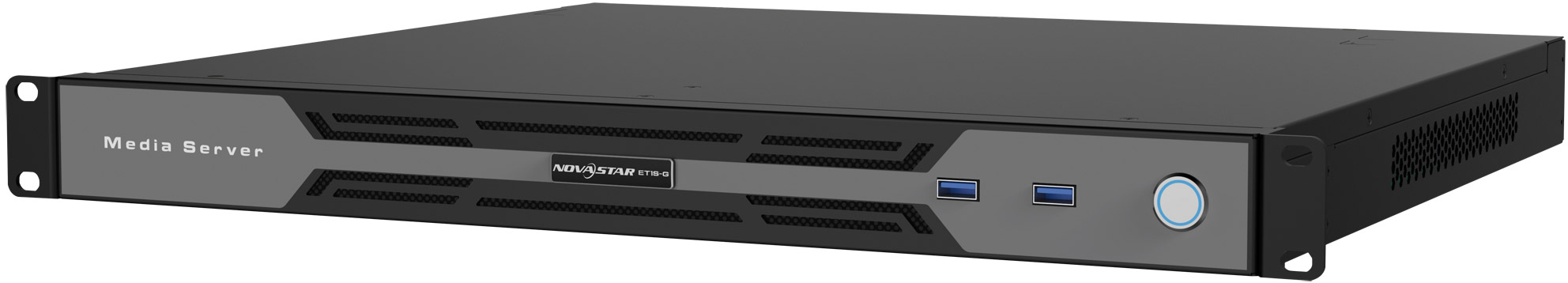

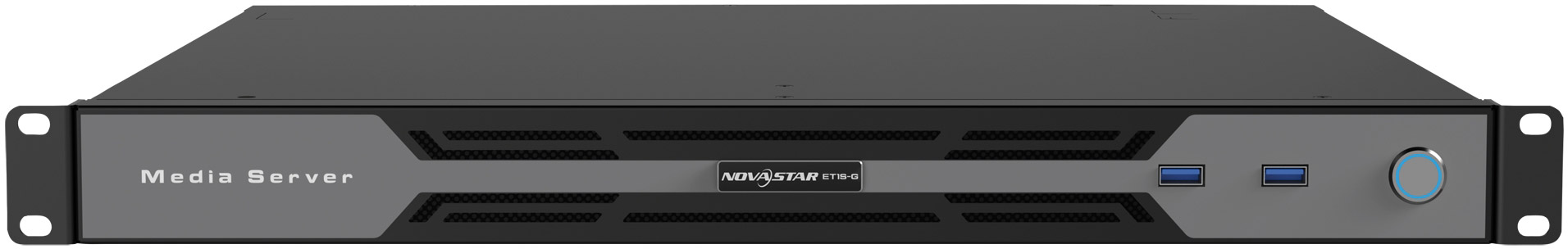

NOVASTAR ET1S-G Media Server

The NovaStar ET1S-G Media Server is designed for small to medium rental or fixed installation applications.

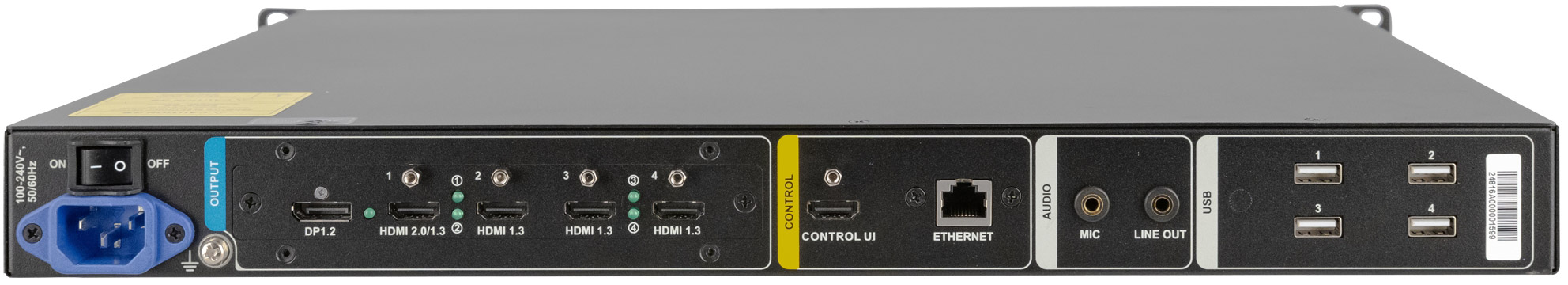

Offering 4K/2K output, the ET1S-G can support single 4K@60 Hz HDMI 2.0, duplicate DP 1.2 or four 2K@60 Hz HDMI 1.3 outputs and can therefore easily drive a single large screen or multiple smaller screens. Furthermore, all outputs are equipped with an EDID lock function.

The included Kompass FX1 software ensures seamless, ultra-clear, smooth video playback with up to four simultaneous playback layers. Its intuitive and user-friendly interface enables users to easily control content playback. NovaStar’s Visual Intelligent Control Platform (VICP) allows remote playback control as well.

Note: the 4K/2K output from the DP 1.2 is duplicated to the 1x HDMI 2.0 or 4x HDMI1.3, meaning they cannot be used at the same time.Technical data:

Mono Inputs:	1
Mono Input Connector:	TRS balanced 3.5 mm
Type of output connector:	HDMI 1.3 (Out) / HDMI 2.0 (Out)
DP 1.2 (out):	1
HDMI 1.3 (Out):	4
HDMI 2.0 (Out):	1
HDMI (for Control):	1
USB 2.0:	4
USB 3.0:	2
Stereo Outputs:	1
Stereo Outputs (type):	TRS balanced 3.5 mm
Output Resolution:	3840 x 2160
NDI Supported:	Yes
Supported Layers:	4
Processor:	AMD Ryzen 5th generation
AV Software Included:	Yes
AV Software Package:	Kompas FX1
Memory Type:	DDR4
Memory Size:	16 GB
Storage 1 Type:	SSD
Storage 1 Size:	250 GB
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	80 W
Power Connector In:	IEC
Data Connector:	RJ45 In/Out
Length (Including Handles):	483 mm
Length (Without Handles):	440 mm
Height (Including Handles):	44 mm
Height (Without Handles):	44 mm
Depth (Including Handles):	400 mm
Depth (Without Handles):	400 mm
Weight:	5.2 kg
Flightcase Size:	19"
Rack Units:	1 U
IP Rating:	IP20 (indoor use only)
Colour:	Black
Cooling:	Active
Maximum Ambient Temperature:	45 °C
Minimum Ambient Temperature:	0 °C
Operating Humidity:	0-80 %rH
Included Cables:	CAT-5 Cable / DP-DP cable / HDMI-HDMI cable / IEC cable
Included Accessories:	Keyboard (USB) / Mouse (USB)
