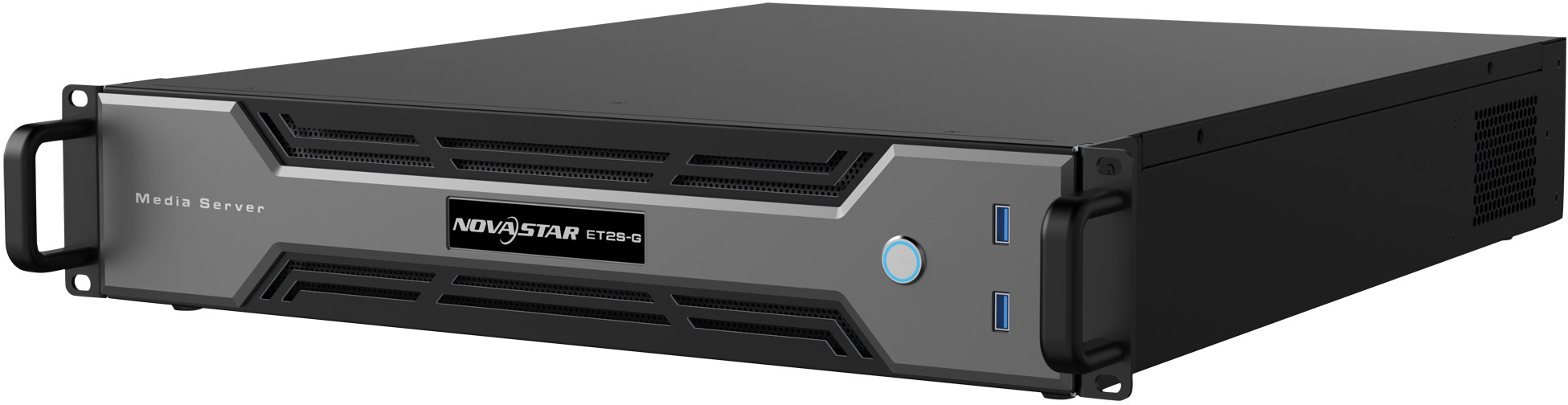

NOVASTAR ET2S-G Media Server

The NovaStar ET2S-G Media Server is designed for small to medium rental or fixed installation applications. Offering 8K x 2K output capacity, the ET2S-G supports up to 1x DP 1.2 and 2x HDMI 2.0 mosaic outputs to easily drive creative mosaic displays on irregular screens. Splitting, merging and rotating are supported, and a single output can be split into up to 64 partitions, allowing for quick mapping settings and ultra-wide screen configurations. Up to 8 layers and 1 audio stream can be played back simultaneously.
The included Kompass FX2 software ensures seamless, ultra-clear and smooth video playback with support for common video formats including H.264, H.265, MPEG-4/2, WMV and VP9. Four USB 3.0 and two USB 2.0 ports provide fast external storage and mouse/keyboard connectivity. The software offers user-friendly media library management and supports PowerPoint files, NDI sources, website sources, streaming media and text sources. Its intuitive and user-friendly interface makes it easy to control content playback. NovaStar’s Visual Intelligent Control Platform (VICP) allows remote playback control as well.Technical data:

Type of input connector:	Mono Input Connector
Mono Inputs:	1
Mono Input Connector:	TS unbalanced 3.5 mm
Stereo Inputs:	1
Stereo Input Connector:	TRS balanced 3.5 mm

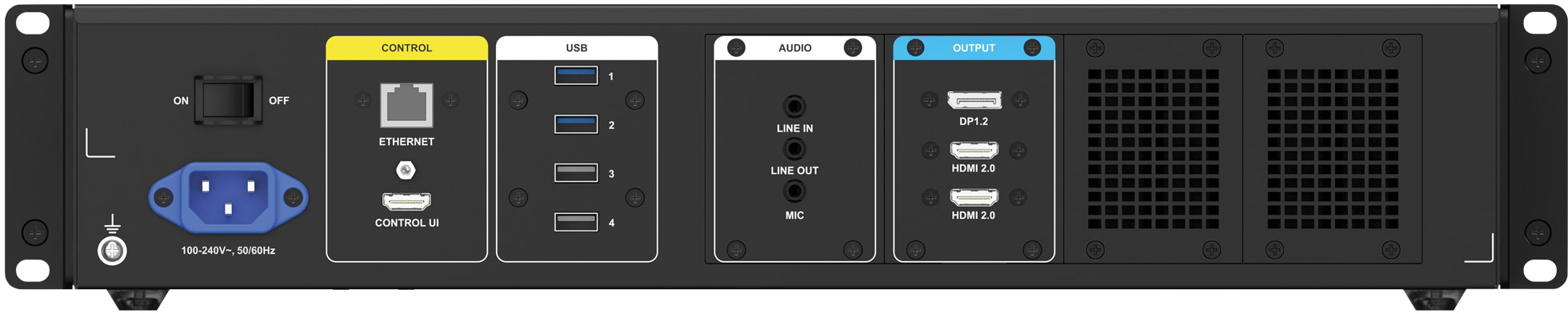

Type of output connector:	HDMI 2.0 (Out) / HDMI (for Control)
DP 1.2 (out):	1
HDMI 2.0 (Out):	2
HDMI (for Control):	1
USB 2.0:	2
USB 3.0:	4
Stereo Outputs:	1
Stereo Outputs (type):	TRS balanced 3.5 mm
Output Resolution:	4096 x 2160
NDI Supported:	Yes
Supported Layers:	8
Processor:	12th Generation Intel Core
AV Software Included:	Yes
AV Software Package:	Kompas FX2
Memory Type:	DDR4
Memory Size:	16 GB
Storage 1 Type:	SSD
Storage 1 Size:	500 GB
Maximum Resolution Width:	16384 px
Maximum Resolution Height:	16384 px
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	400 W
Power Connector In:	IEC
Data Connector:	RJ45 In/Out / USB
Length (Including Handles):	483 mm
Length (Without Handles):	440 mm
Height (Including Handles):	95 mm
Height (Without Handles):	88 mm
Depth (Including Handles):	581 mm
Depth (Without Handles):	535 mm
Weight:	10 kg
Rack Units:	2 U
IP Rating:	IP20 (indoor use only)
Colour:	Black
Cooling:	Active
Maximum Ambient Temperature:	45 °C
Minimum Ambient Temperature:	0 °C
Operating Humidity:	0-80 %rH
Included Cables:	DP-DP cable / HDMI-HDMI cable / IEC cable
Included Accessories:	Keyboard (USB) / Mouse (USB)
