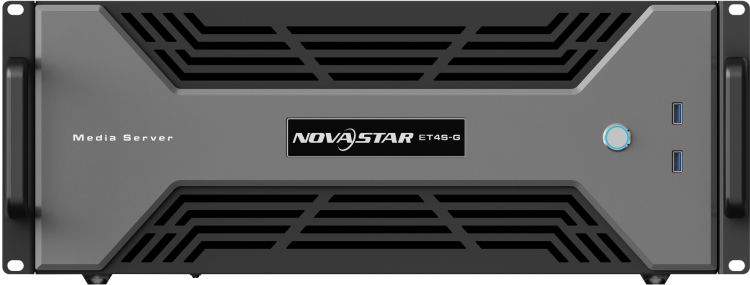

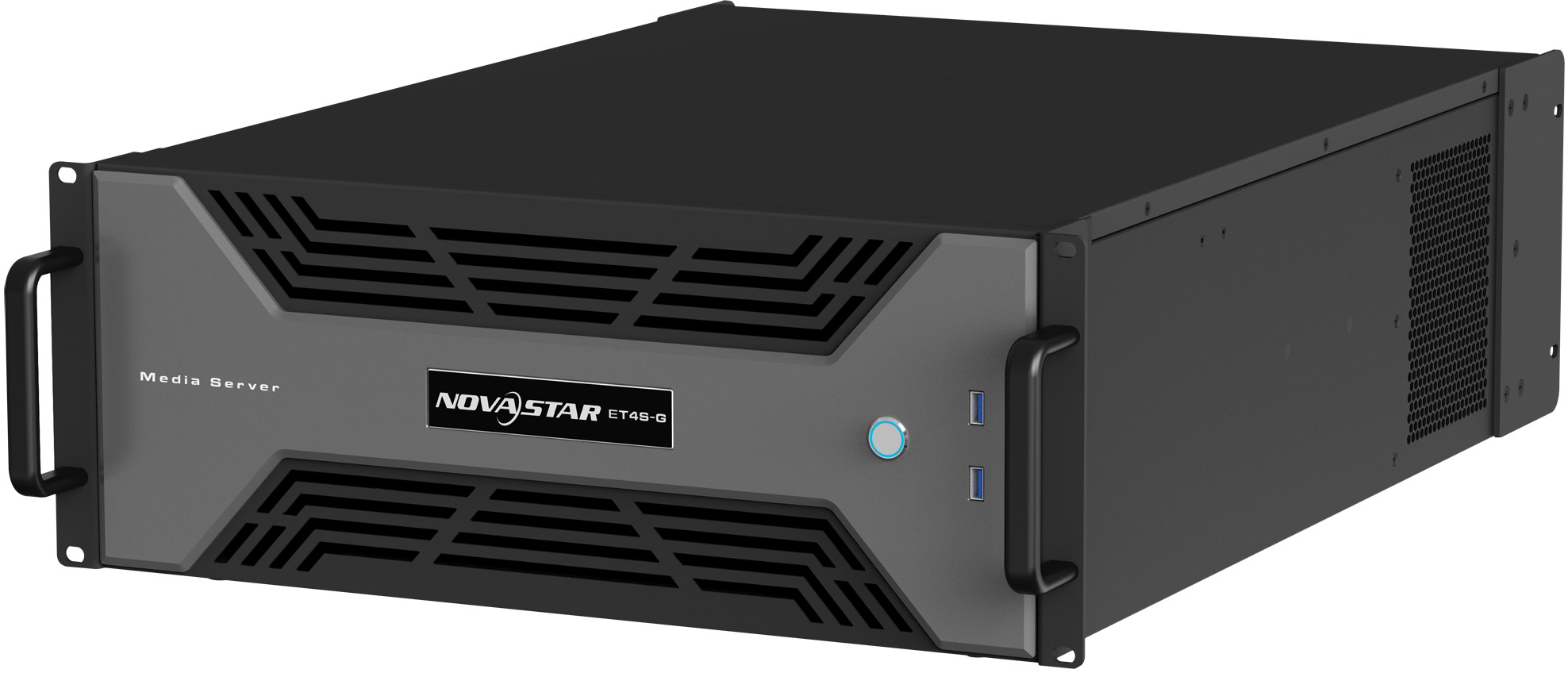

NOVASTAR ET4S-G (P2) Media Server

The NovaStar ET4S-G (P2) Media Server is designed for multimedia exhibition halls, stage performances and other creative fixed installation applications. It is equipped with the MPG2200 graphics card and supports up to 8K x 4K output. The ET4S-G (P2) supports up to four DP 1.4 mosaic outputs to easily drive creative mosaic displays on irregular screens. Splitting, merging and rotating are supported, and each output can be split into up to 64 partitions, enabling quick mapping settings and ultra-wide screen configurations. Up to 12 layers and 1 audio stream can be played back simultaneously.
The included Kompass FX3 software ensures seamless, ultra-clear and smooth video playback with support for common video formats including H.264, H.265, MPEG-4/2, WMV and VP9. Six USB 3.0 ports provide fast external storage and mouse/keyboard connectivity. The software offers user-friendly media library management and supports PowerPoint files, NDI sources, website sources, streaming media and text sources. Its intuitive and user-friendly interface makes it easy to control content playback. NovaStar’s Visual Intelligent Control Platform (VICP) allows remote playback control as well.
Please note that the ET2G-G (P2) does not support genlock input/output.Technical data:

Type of input connector:	Mono Input Connector / Stereo Input Connector
Mono Inputs:	1
Mono Input Connector:	TS unbalanced 3.5 mm
Stereo Inputs:	1
Stereo Input Connector:	TRS balanced 3.5 mm
Type of output connector:	HDMI (for Control)
DP1.4 (out):	4
HDMI (for Control):	1
USB 3.0:	6
Stereo Outputs:	4
Stereo Outputs (type):	XLR 3P / TRS balanced 3.5mm
Output Resolution:	5120 x 2880
NDI Supported:	Yes
Supported Layers:	12
Processor:	12th Generation Intel Core
AV Software Included:	Yes
AV Software Package:	Kompas FX3
Memory Type:	DDR5
Memory Size:	32 GB
Storage 1 Type:	SSD
Storage 1 Size:	250 GB
Storage 2 Type:	SSD
Storage 2 Size:	1000 GB
Graphics Card Type:	MPG2200
Video RAM Type:	GDDR5X
Video RAM Size:	5 GB
Maximum Resolution Width:	16384 px
Maximum Resolution Height:	16384 px
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	500 W
Power Connector In:	IEC
Data Connector:	RJ45 In/Out / USB
Length (Including Handles):	483 mm
Length (Without Handles):	440 mm
Height (Including Handles):	184 mm
Height (Without Handles):	177 mm
Depth (Including Handles):	642 mm
Depth (Without Handles):	598 mm
Weight:	17 kg
Rack Units:	4 U
IP Rating:	IP20 (indoor use only)
Colour:	Black
Cooling:	Active
GenLock:	In & Out
Maximum Ambient Temperature:	40 °C
Minimum Ambient Temperature:	0 °C
Operating Humidity:	0-80 %rH
Included Cables:	DP-DP cable / HDMI-HDMI cable / IEC cable
Included Accessories:	Keyboard (USB) / Mouse (USB)
