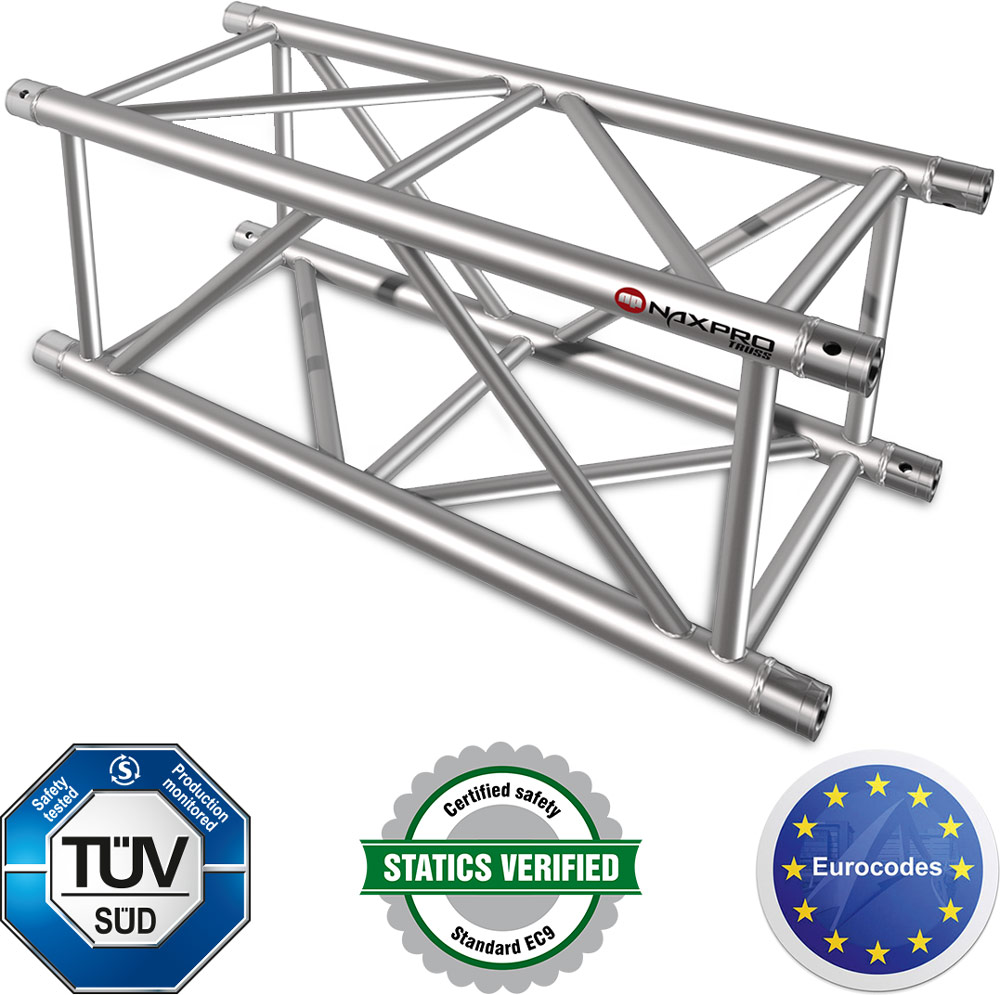

Naxpro-Truss TD 54 Straight

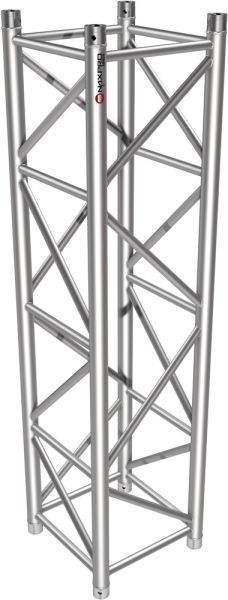

Naxpro-Truss TD 54 Tower Truss System

The TÜV certified TD 54 Tower truss system perfectly complements the ST 54 series, as it is based on the same connection system. Due to the massive 60x5mm belt tube and the 30x3mm diagonals, this system has the ideal prerequisite for creating truss supports. The ladder bracings, which are welded in on both sides, provide a comfortable climb and make assembly much easier. These features make Naxpro truss tower systems perfect for stage roofs and other truss constructions.

The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. The Naxpro TD 54 truss system is available in all RAL-colours and custom constructions.

Technical data:

• Overall widht 510mm
• Outer diameter tubing: 60x5 mm
• Diagonal 30x3 mm

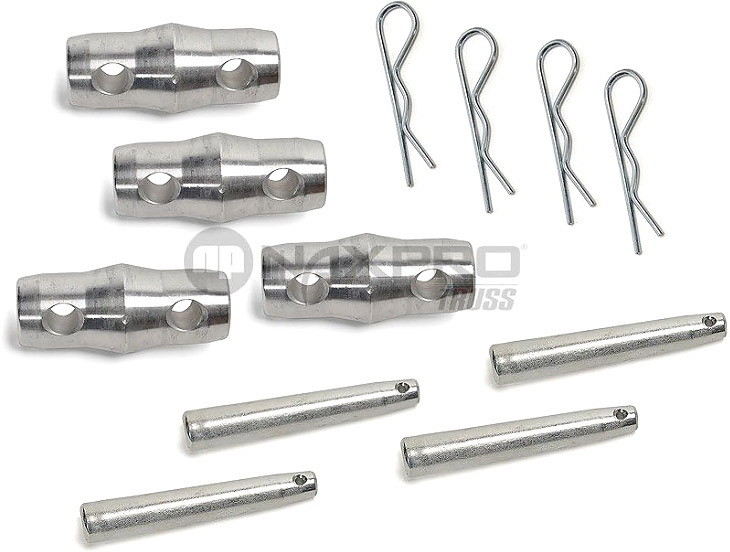

• Including cone connector with bolt and split pin (4x cone, 8x bolt, 8x split pin)
• Alloy EN AW 6082 T6
• TÜV certified
