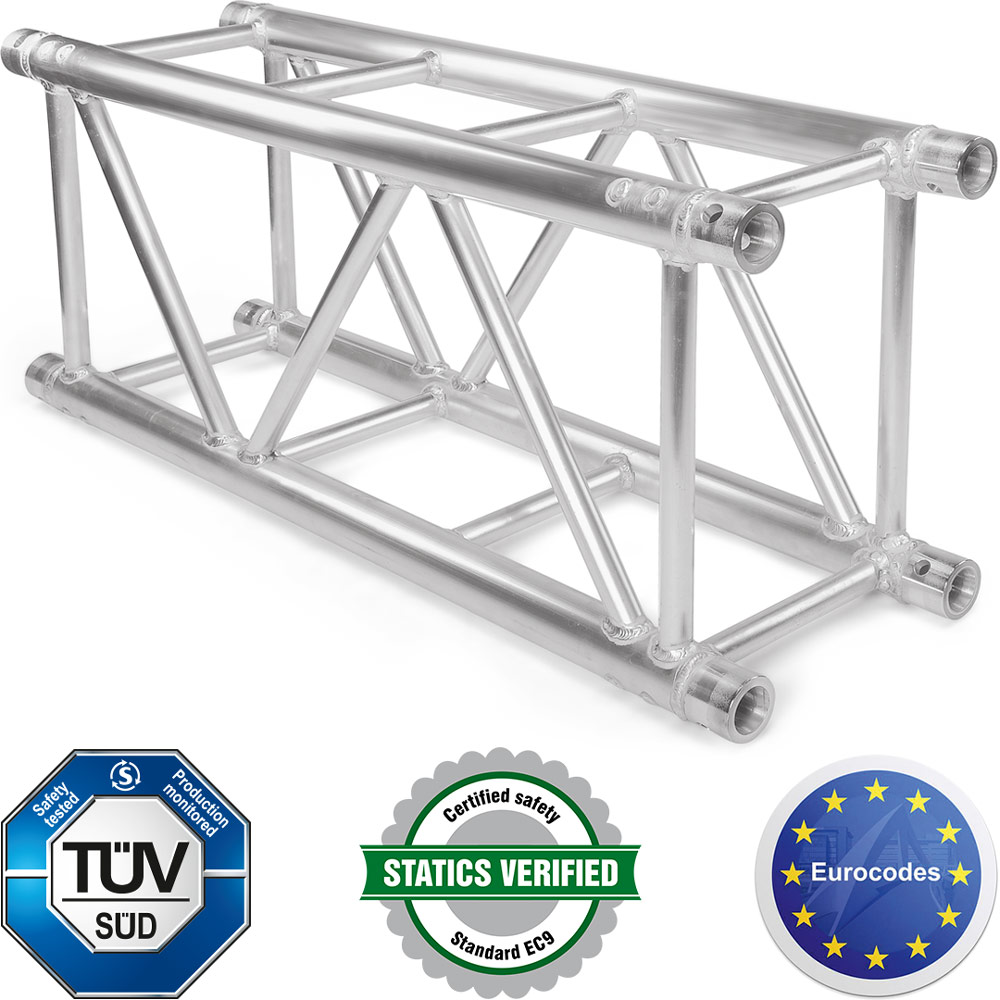

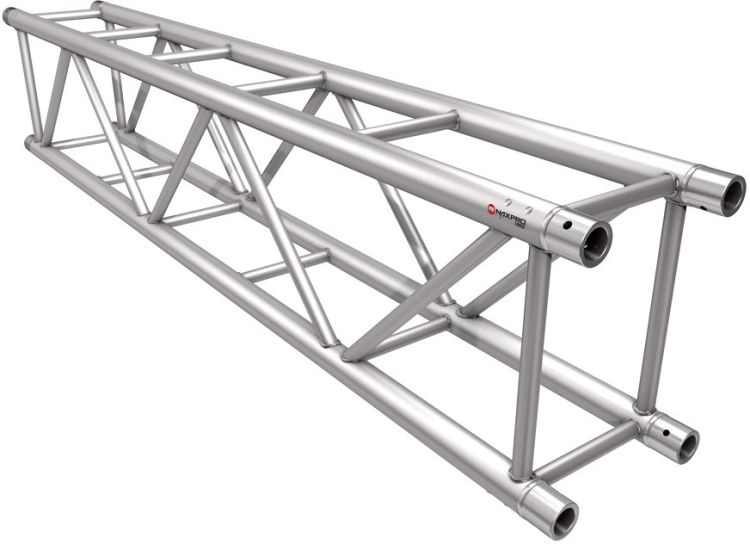

Naxpro-Truss XD 340 section - D45

The TÜV-certified rectangular Naxpro Truss XD 340 truss system combines the compact width of a 30 mm truss with the high load capacity of a 40 mm system.

Thanks to its space-saving dimensions, Naxpro Truss XD 340 provides a logistical advantage during transportation, but at the same time it offers a wide range of uses thanks to its extremely high stability. With a free span of up to 20 m, Naxpro Truss XD 340 is often used in pre-rig constructions, in fixed installations and in exhibition and stage construction.

The system is connected by means of a conical connection. The connectors are included in the scope of delivery. To connect the trusses, you only need a light aluminum hammer as a tool. Naxpro Truss XD 340 is available in all RAL colors and special designs.

Technical data:

• edge length 400 mm
• Harness tube 50x3 mm
• Diagonal 25x3 mm

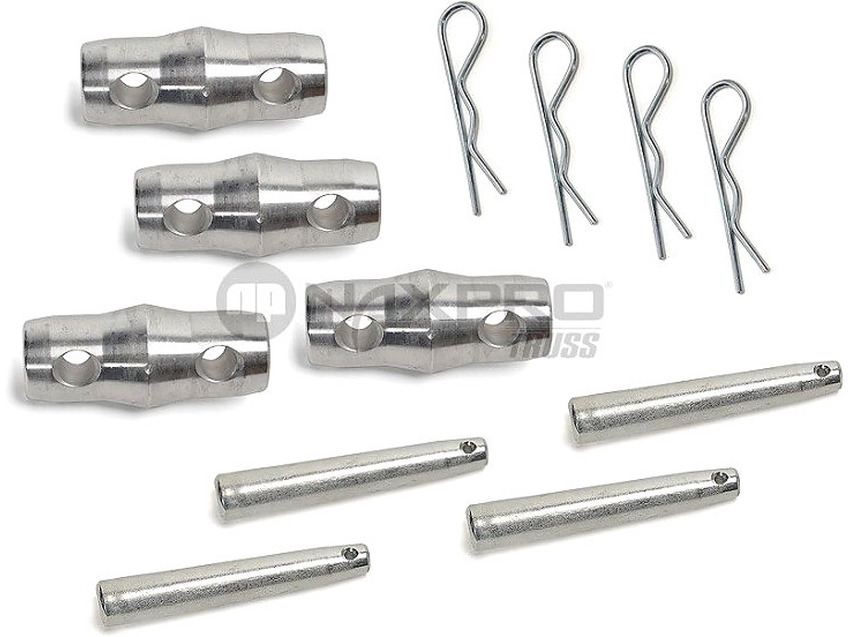

• incl. Koni connectors with bolts and split pins (4x cone, 8x bolt, 8x split pin)
• Alloy EN-AW 6082 T6
• TÜV tested
