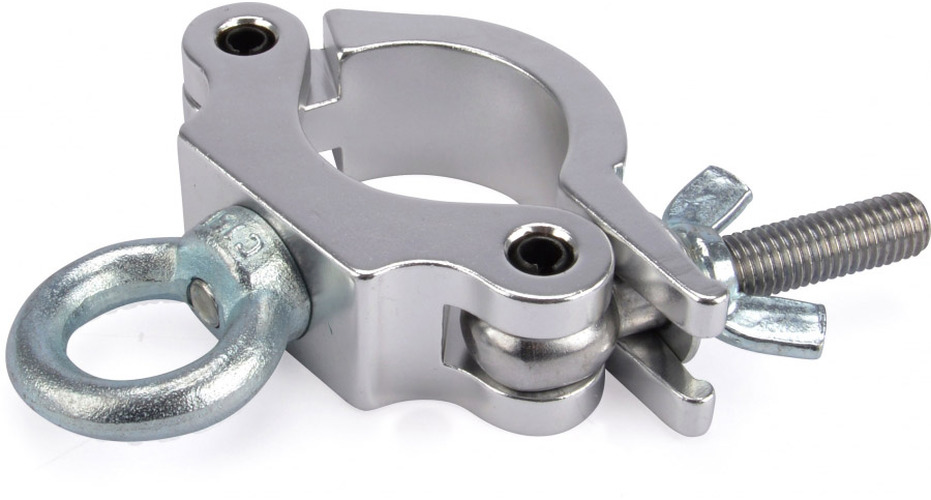

Riggatec Half Coupler, Narrow, Silver, with Eyelet, 170 kg (48–51 mm)
€9.99 *
€20.51 *
(51.29% Saved)
incl. tax,
plus shipping costs
Express delivery possible
Availability:
Delivery time: 1-3 days
Delivery time: 1-3 days
Item number: 400200085
EAN: 4250595829715
Riggatec half couplers, narrow, silver with eyelet – Up to 170 kg
The narrow Riggatec half... more
All information about the product:
"Riggatec Half Coupler, Narrow, Silver, with Eyelet, 170 kg (48–51 mm)"
Riggatec half couplers, narrow, silver with eyelet – Up to 170 kg
The narrow Riggatec half coupler is designed for pipes with a diameter of 48 to 51 mm. The silver half coupler is made of 6061 T6 aluminum and is rated for a tensile load of up to 170 kg. It comes equipped with a black M10 machine screw and a galvanized M10 ring eye made of C15E.
Highlights
- For 48–51-mm pipes: Suitable for pipes with a diameter of 48 to 51 mm.
- Load capacity up to 170 kg: Designed for a tensile load of up to 170 kg.
- Maximum shear load: The specified maximum shear load is 40 kg.
- With ring eye: Equipped with a galvanized M10 ring eye made of C15E.
- Narrow design: The clamp width is 30 mm.
- Aluminum construction: Made of 6061 T6 aluminum.
- Mounting screw included: Includes a black M10 mounting screw.
Technical Specifications
| Product Type | Half couplers / half couplers with eyelet |
| Version | Narrow |
| Suitable Pipe Diameter | 48–51 mm |
| Maximum tensile load | 170 kg |
| Maximum shear load | 40 kg |
| Clamp width | 30 mm |
| Material | Aluminum 6061 T6 |
| Equipment screw | M10, black |
| Eye bolt | M10, C15E, galvanized |
| Lock screw | M12, galvanized, with snap ring, washer, and wing nut |
| External dimensions (L × W × H) | 120 × 30 × 90 mm, without set screw and ring eye |
| Weight | 0.35 kg |
| Color | Silver |
