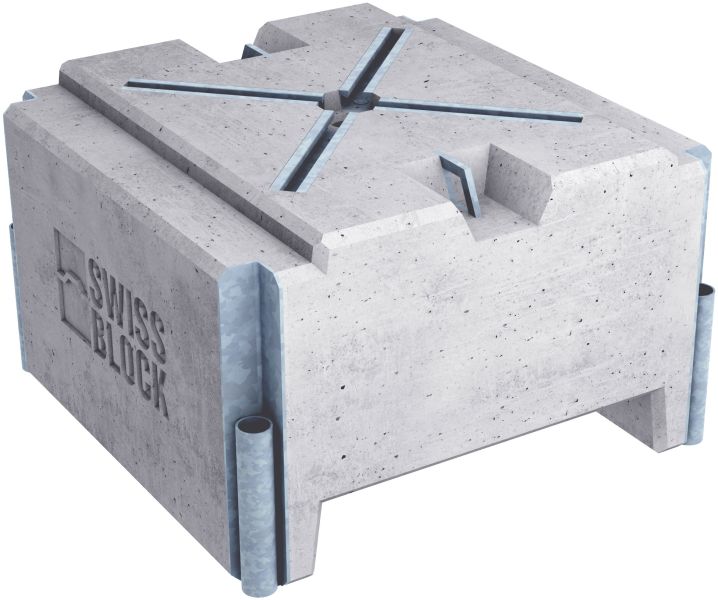

SwissBlock® Mini Event Block with spindle mounts - concrete weight 0.8 x 0.8 x 0.5 m, approx. 600 kg

As multifunctional as a Swiss Army knife

Finally, there is a clever and flexible solution for stabilizing temporary structures for lighting, sound, stage technology, and trusses at events: the Event Block from SwissBlock®.

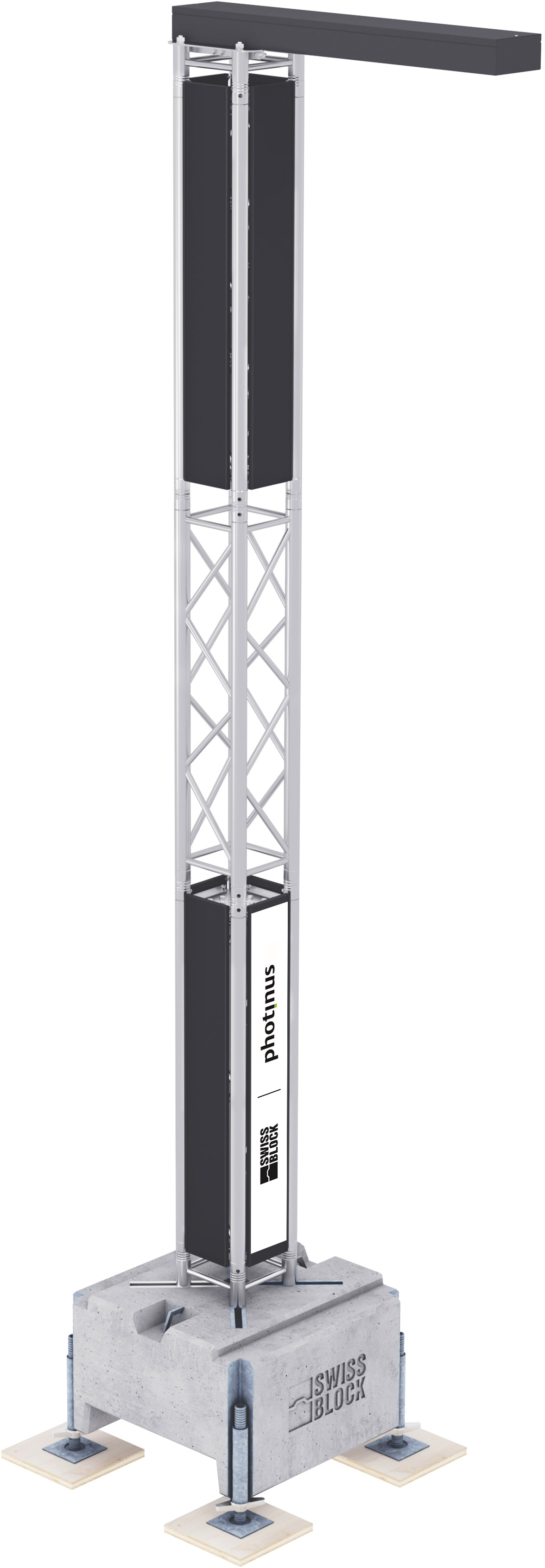

In the event industry, quick assembly and disassembly, safe structures, and maximum flexibility are crucial. Whether light towers, PA towers, LED walls, ground supports, or entrance portals: every event has specific requirements in terms of stability and logistics.

This is exactly where the Event Block comes into play: a monolithic element made of high-strength concrete that was specially developed for the requirements of the event industry. Originally conceived as a one-off customer project, the Event Block quickly became very popular. Based on a well-designed formwork system in combination with several components made of galvanized steel cast into the concrete galvanized steel components cast into the concrete, an extremely flexible and versatile solution was created.

What makes this event block special:

• High stability and safety: The Event Block serves as structural ballast for a wide range of temporary structures and can be used individually or stacked.

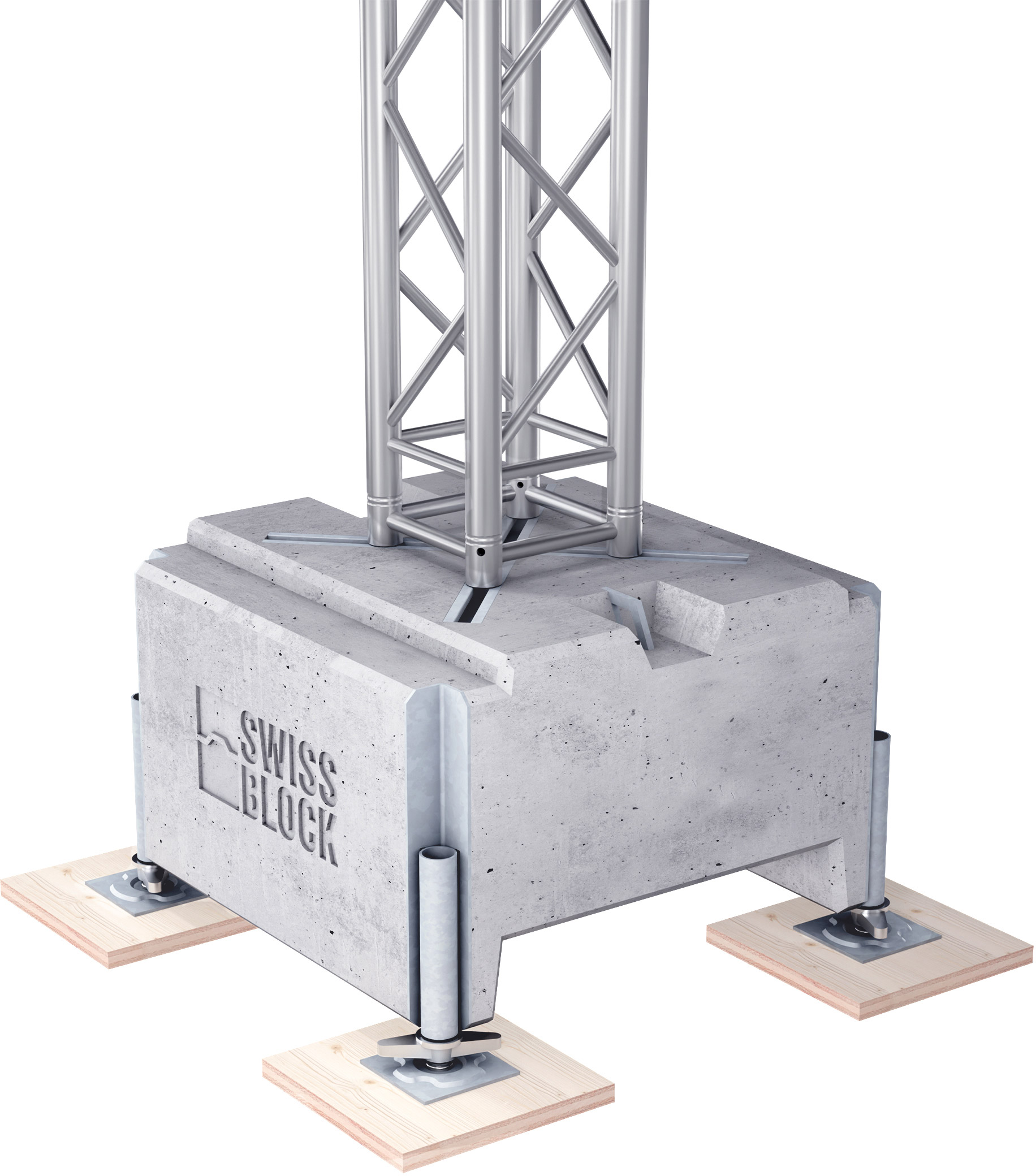

• Maximum flexibility: Thanks to cross-shaped anchor rails, truss systems from different manufacturers can be easily assembled and disassembled.
• Easy handling: The block weights are optimally matched to truck transport. Fork guides or recesses ensure easy loading and flexible placement at the place of use using a forklift or pallet truck. Spindle feet also enable easy and precise leveling.
• Durable and sustainable: The Event Block can be reused indefinitely and is particularly durable thanks to its robust construction.

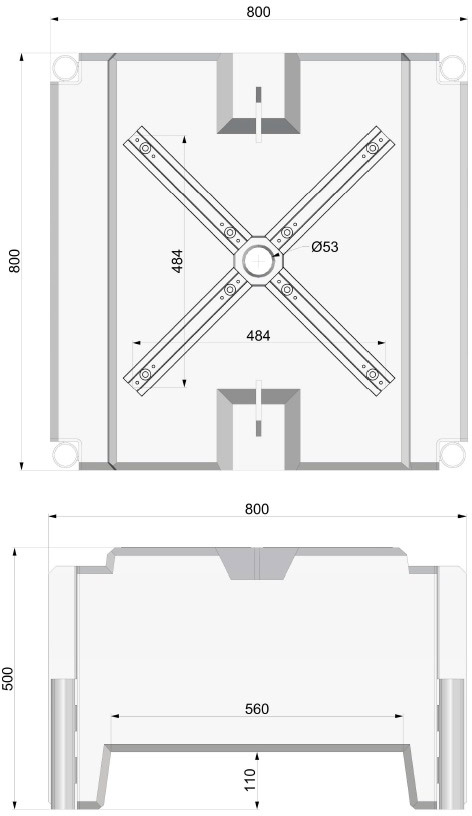

Technical specifications:

• Dimensions: 80 x 80 x 50 cm (L x W x H)
• Weight: approx. 600 kg
• Material: High-strength concrete according to EN 206, C35/45 or higher
• Transport mounting: 1 recess (560 x 100 mm) at the bottom for pallet trucks or hand pallet trucks
• Anchor rails: 4 cross-shaped anchor rails set in concrete for max. tensile forces of 38.9 kN (single load) per rail
• Truss connection: Direct connection for trusses with max. 47 cm cross-section using hammerhead screws
• Spindle mounts: 4 at the corners for quick and precise leveling with standard scaffolding spindles
• SwissLoop® system anchor: 2 integrated anchors for easy relocation or connection of electric chain hoists
• Frost resistance: No deep hollows – no standing water
• Cable entry: 1 central, vertical opening Ø 53 mm for cabling or stacked applications
• Edge protection: Concrete edges chamfered all around (15 x 15 mm) for reduced wear
• Steel components: Hot-dip galvanized for high durability
