SHOWGEAR PLE-30-040 - Direct Control Chain Hoist Controller 4-Channel
€529.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 120619195
EAN: 8717748394989
MPN: 70282
The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled... more
All information about the product:
"SHOWGEAR PLE-30-040 - Direct Control Chain Hoist Controller 4-Channel"

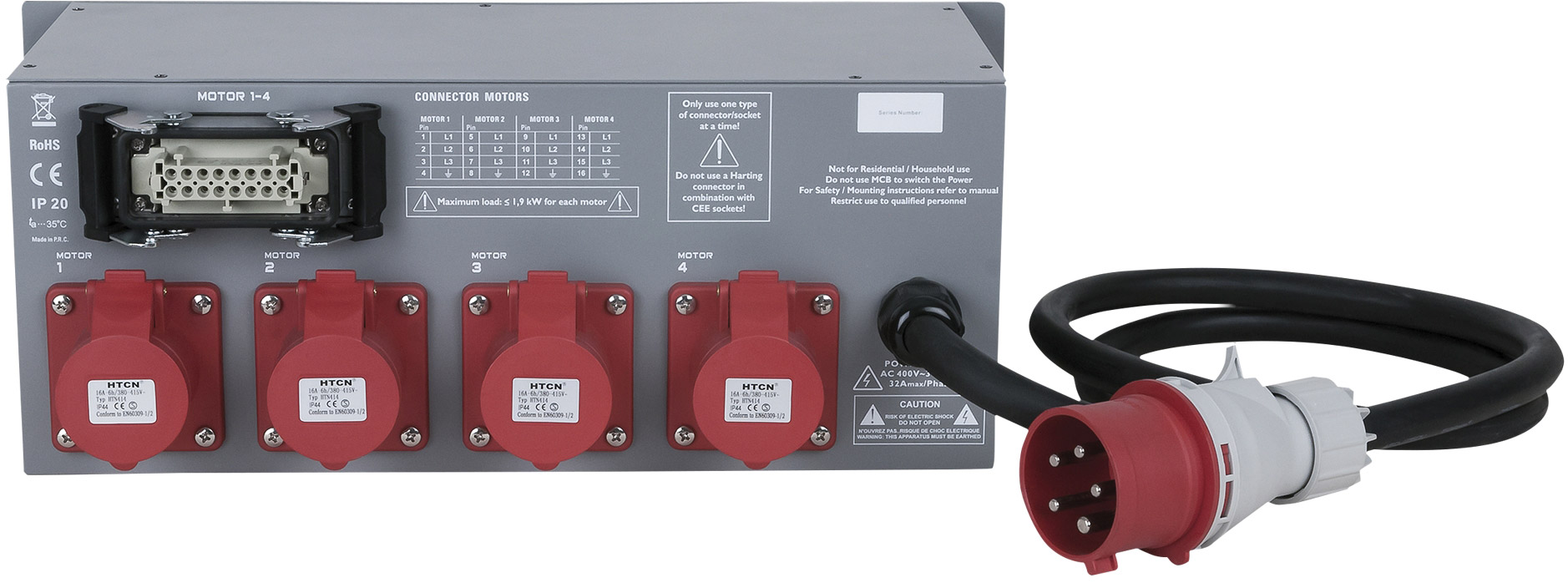

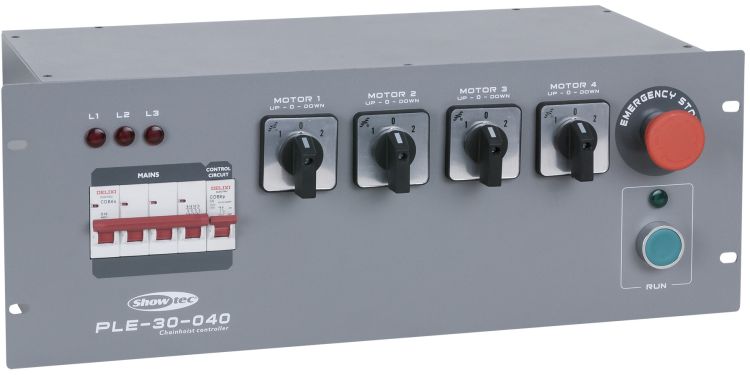

The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 4 hoist can be selected individually to go up or down or to be deselected. On the backside the unit has 4 x 4-pin CEE connectors as well as a 16-pin multipin to connect a break/out box.Technical data:
| Power Supply: | 400 V AC 3 Phase |
| Power Connector In: | CEE5P 32 A |
| Power Connector Out: | CEE4P 16A / Multipin H16 |
| Cable Length: | 1 m |
| MCB Rated Current: | 10 A |
| MCB Class: | Class D |
| LED Indicators: | Power |
| Housing: | Metal |
| Finish: | Powder Coating |
| Colour: | Gray |
| Height (mm): | 178 mm |
| Width (mm): | 482 mm |
| Depth (mm): | 278 mm |
| Weight: | 10 kg |
| Rack Units: | 4 U |
| Flightcase Size: | 19" |
| IP Rating: | IP20 (indoor use only) |
