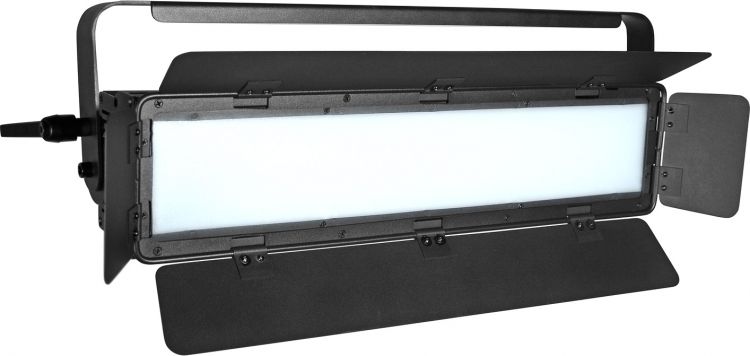

EUROLITE LED PLL-432 CW/WW Panel

€399.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available

Item number: 120034865

EAN: 4026397700718

MPN: 40001894

DMX-controlled surface light with 432 dual white LEDs, QuickDMX port and barn doors 432... more

All information about the product:

"EUROLITE LED PLL-432 CW/WW Panel"

DMX-controlled surface light with 432 dual white LEDs, QuickDMX port and barn doors

432 powerful LEDs SMD 2835 CW/WW

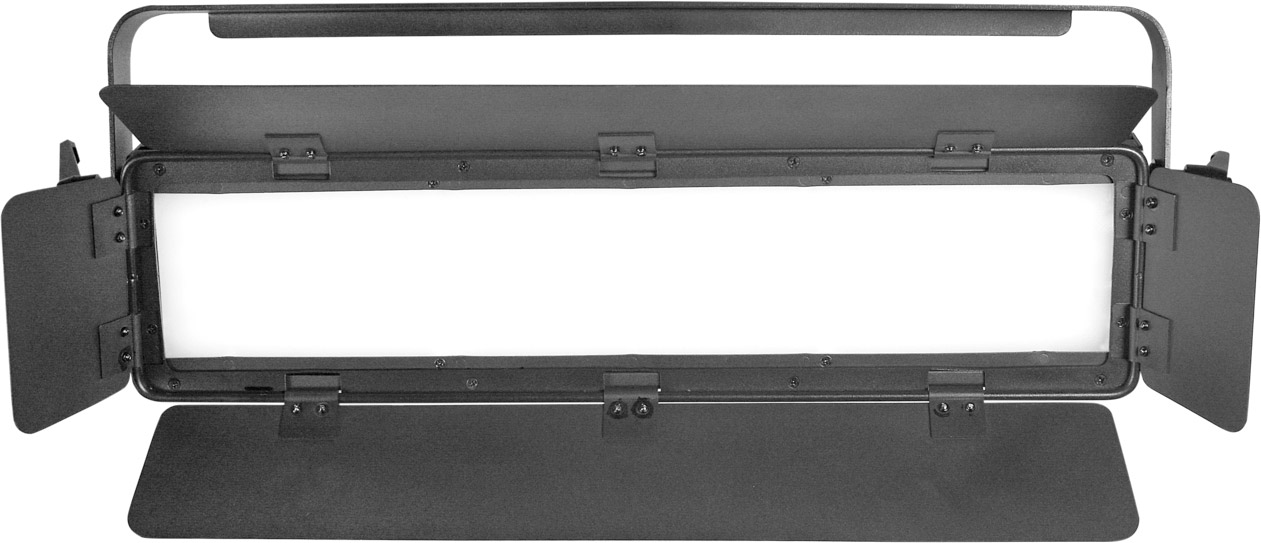

4 barn doors to avoid blinding the audience and for protection during transport
Energy-saving, durable and environmentally friendly
Variable color temperature 2800 K - 6500 K
Pulse-width modulation variable
Strobe effect
Integrated show programs
The device is cooled by passive convection cooling
Control via DMX; quick select potentiometer for brightness and color temperature; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
For application areas such as: Video and photography; stage; Trade fair and shop fitting; installation
Preprogrammed in Light Captain
Mains input and output for power linking up to 8 units
Rugged carrying handle
Silent operation
Application possibility: Suspended; on stand

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	85 W
IP classification:	IP20
Protection class:	Protection class I
Fuse:	T 3 A fuse replaceable
Lamp type:	LED lamp
LED type:	432 x SMD 2835 CW/WW
DMX channels:	2; 4; 6
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; quick select potentiometer for brightness and color temperature; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light Captain
Projection:	Flicker-free
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color temperature:	2800K - 6500K adjustable
Color rendering index (CRI):	91 Ra
Illuminance in Lux (lx):	Cold white (CW) 1m: 919 lx, 3m: 124 lx, 6m: 38 lx Warm white (WW) 1m: 801 lx, 3m: 109 lx, 6m: 33 lx All 1m: 1681 lx, 3m: 228 lx, 6m: 69 lx
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Carrying handle:	1 pc/pcs
Dimensions:	Width: 60,3 cm Depth: 17,9 cm Height: 20,8 cm
Weight:	4,60 kg
Noise classification:	Class 0 (no noise at all)
Photobiological safety:	Risk Group 0
