Eutrac 3 Phase Conductor line

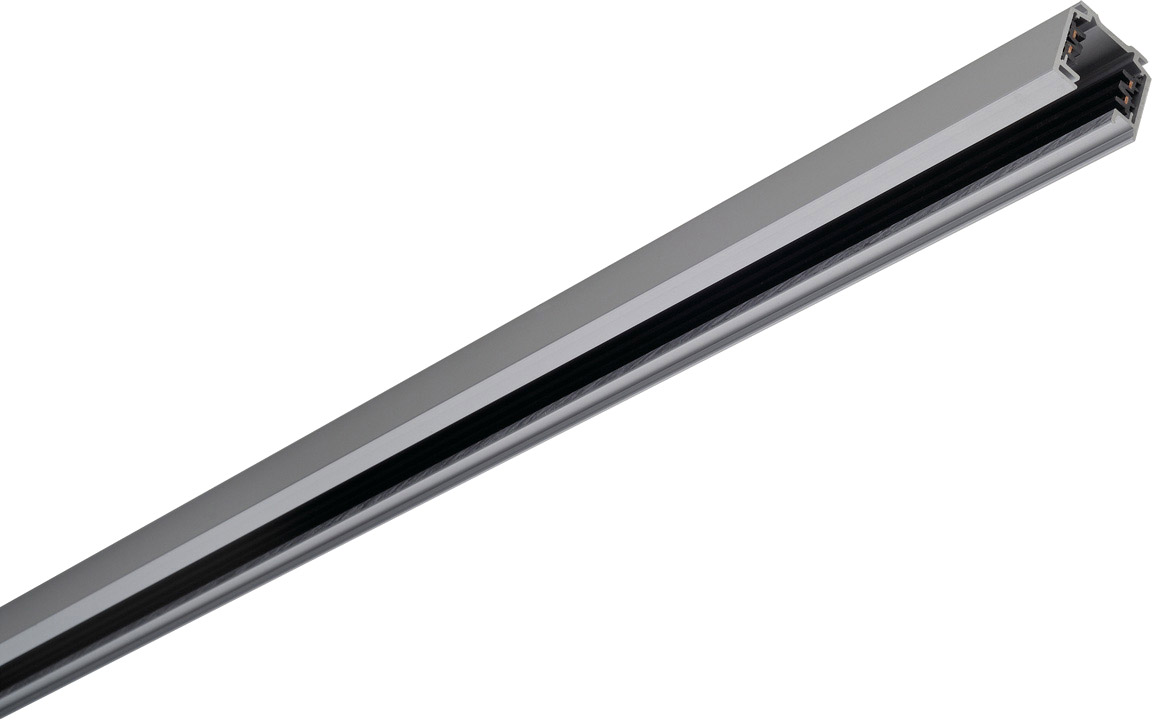

EUTRAC High-Voltage 3-Phase Track – Flexible Surface-Mounted Track for Professional Lighting Systems

The EUTRAC high-voltage 3-phase track is a high-quality 5-conductor surface-mounted track for three separately switchable circuits. It is ideal for professional lighting installations in retail stores, exhibitions, offices, galleries, restaurants and private residential areas.

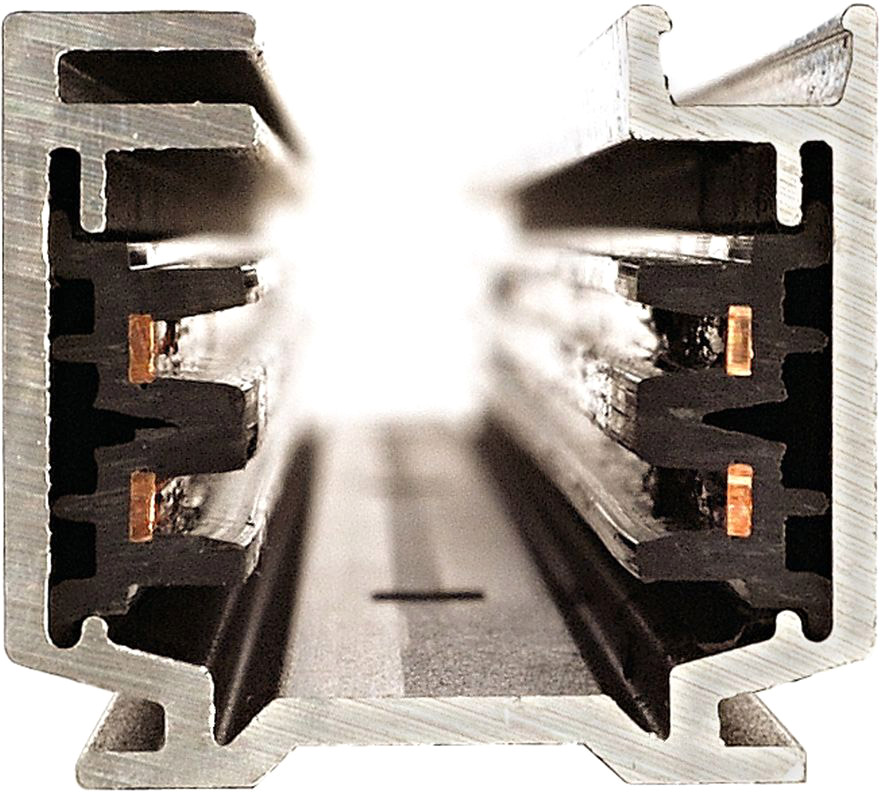

The track consists of a robust extruded aluminium profile and two PVC support profiles, each with two embedded 2.5 mm² copper conductors. The protective conductor is routed via the aluminium profile. Thanks to the three separately switchable circuits, different groups of luminaires within an installation can be controlled flexibly and independently.

Easy Wall or Ceiling Installation

The EUTRAC 3-phase track is designed for direct wall or ceiling mounting. Pre-drilled holes in the profile allow quick and easy installation. This makes the track suitable for both new installations and the extension of existing EUTRAC 3-phase track systems.

A particular advantage is the easy adjustment of the track length directly on site. The aluminium profile can simply be cut to the required length using a saw. There is no need to shorten or bend the integrated copper conductors.

Flexible Use with EUTRAC Adapters

EUTRAC adapters with data bus tap can also be used in this track without a data bus via the standard phase tap. Mechanical and electrical use is therefore possible; however, data bus functionality is not available with this version.

High Load Capacity and Certified Safety

The EUTRAC high-voltage 3-phase track is designed for a maximum load of 16 A at 230 V. It complies with protection class I and is both VDE and ENEC certified. This makes it a reliable basis for durable and professional lighting installations.

Product Benefits at a Glance

• EUTRAC high-voltage 3-phase track system
• 5-conductor track for three separately switchable circuits
• Robust aluminium profile with integrated copper conductors
• Suitable for direct wall and ceiling mounting
• Easy length adjustment by cutting
• No shortening or bending of the copper conductors required
• Compatible with EUTRAC adapters with and without data bus tap
• Maximum load of 16 A
• Suitable for 230 V high-voltage applications
• VDE and ENEC certified
• Available in black, silver and white

Technical Specifications

EUTRAC 3-Phase Track for Flexible and Professional Lighting

Whether for shops, retail spaces, exhibitions, offices or sophisticated residential lighting, the EUTRAC high-voltage 3-phase track provides a flexible, robust and durable basis for individually configurable lighting systems. With three separately switchable circuits, easy installation and straightforward length adjustment, the track system can be optimally adapted to a wide variety of lighting concepts.
