MONACOR SPH-200KE/SW Top hi-fi bass-midrange speaker, 120 W, 8 O
This article is currently not available.
€118.00 *
Availability:
Currently not available
Currently not available
Item number: 250140485
EAN: 4007754415131
MPN: 1000754
Top hi-fi bass-midrange speaker, 120 W, 8 O Black Kevlar cone Diecast aluminium basket... more
All information about the product:
"MONACOR SPH-200KE/SW Top hi-fi bass-midrange speaker, 120 W, 8 O"
Top hi-fi bass-midrange speaker, 120 W, 8 O
- Black Kevlar cone
- Diecast aluminium basket for 3-way and also 2-way combinations of highest quality
- For full range applications
- Excellent bass reproduction in the entire hi-fi range
| Impedance (Z): | 8 O |

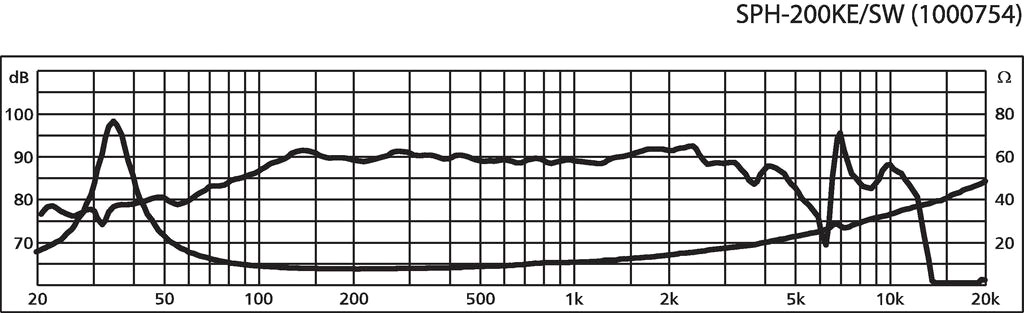

| Frequency range: | f3-4,500 Hz |
| Resonant frequency (fs): | 28 Hz |
| Power rating (RMS): | 80 W |
| Peak music power output (MAX): | 120 W |
| SPL: | 90 dB/W/m |
| Suspension compl. (Cms): | 0.89 mm/N |
| Moving mass (Mms): | 37 g |
| Mech. Q factor (Qms): | 4.65 |
| Electr. Q factor (Qes): | 0.41 |
| Total Q factor (Qts): | 0.38 |
| Equivalent volume (Vas): | 54 l |
| DC resistance (Re): | 6.2 O |
| Force factor (BxL): | 9.90 Tm |
| Voice coil induct. (Le): | 0.75 mH |
| Voice coil diameter: | Ø 50 mm |
| Voice coil former: | Kapton |
| Linear excursion (XMAX): | ± 4.75 mm |
| Eff. cone area (Sd): | 207 cm2 |
| Magnet weight: | 840 g + 50 g |

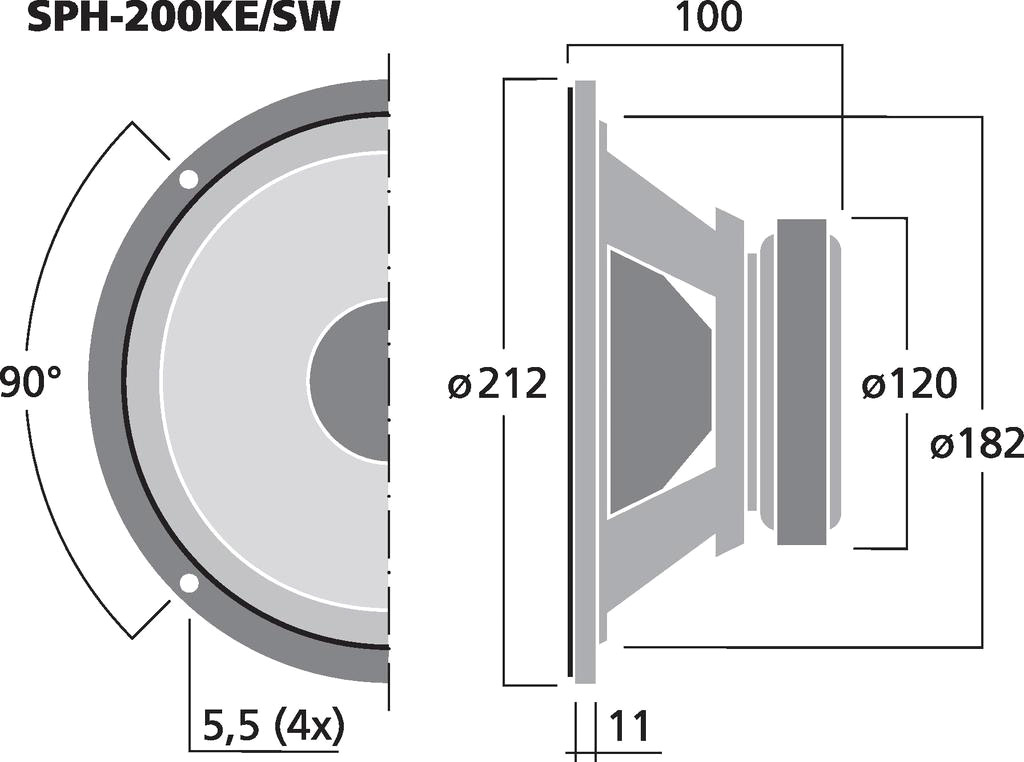

| Magnet diameter: | Ø 120 mm |
| Mounting cutout: | Ø 182 mm |
| Mounting depth: | 89 mm |
| Dimensions: | Ø 212 mm x 100 mm |
| Outside diameter: | Ø 212 mm |
| Width: | Ø 212 mm |
| Depth: | 100 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 2.70 kg |
| Packing unit: | 1 |
| Type of speaker: | 8" |
| Packing dimensions (W x H x L): | 0.22 x 0.124 x 0.23 m |
| Gross weight: | 2.94 kg |
| Net weight: | 2.70 kg |
