DT-254
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 250105730
EAN: 4007754095623
MPN: 0102780
HiFi Tweeters
Manufacture of... more
All information about the product:
"DT-254"
HiFi Tweeters
Manufacture of highest quality with very minor strays and high power capabilities, especially suitable for low frequency use.

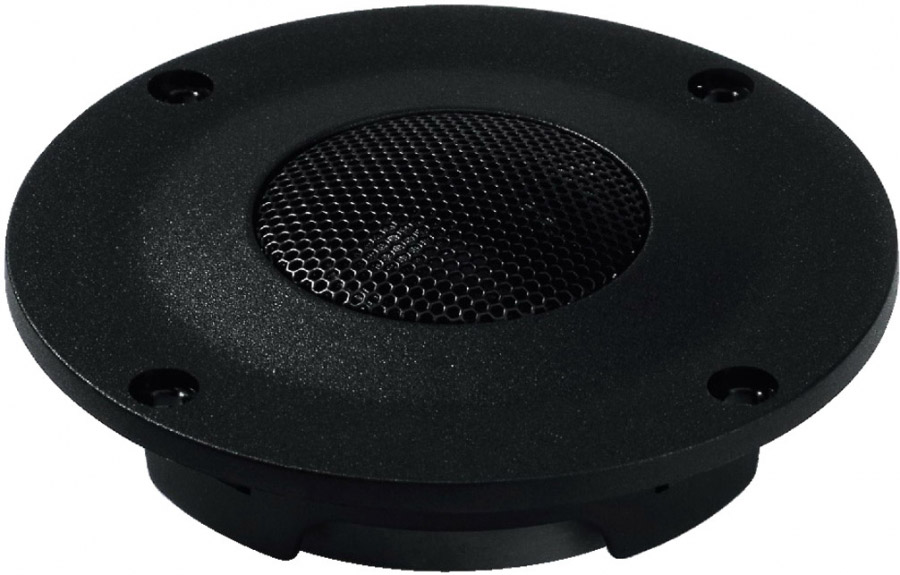

HiFi dome tweeter, 150WMAX, 8Ω
Textile dome, very low resonant frequency and max. frequency response extension with very high linearity, special front plate design for optimising the sound radiation, fine sound reproduction, suitable for high-end applications. HiFi-Selbstbau, Online magazine 2008
"A tweeter of unconventional design with a high suitability for everyday use."
"Which tweeter can keep up with that?"
Textile dome, very low resonant frequency and max. frequency response extension with very high linearity, special front plate design for optimising the sound radiation, fine sound reproduction, suitable for high-end applications. HiFi-Selbstbau, Online magazine 2008
"A tweeter of unconventional design with a high suitability for everyday use."
Hobby HiFi
"Which tweeter can keep up with that?"
Klang+Ton
"One of the surprises during the test ..."
| Impedance (Z): | 8Ω |
| Resonant frequency (fs): | 900Hz |
| Max. frequency range: | fx-22kHz |
| Rec. crossover freq. (12dB): | 2kHz |
| Music power: | 150WMAX |
| Power rating: | 90WRMS |
| SPL (1W/1m): | 92dB |

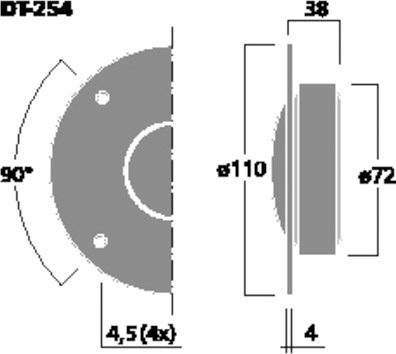

| Voice coil diameter: | 25mm |
| Magnet diameter: | 72mm |
| Mounting cutout: | Ø 85mm |
| Mounting depth: | 38mm |
| Dimensions: | Ø 110mm |
| Weight: | 0.53kg |
Further links
- Further products by MONACOR
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:MONACOR INTERNATIONAL GmbH
Konsul-Smidt-Str. 68
DE-28217 Bremen
[email protected] -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
