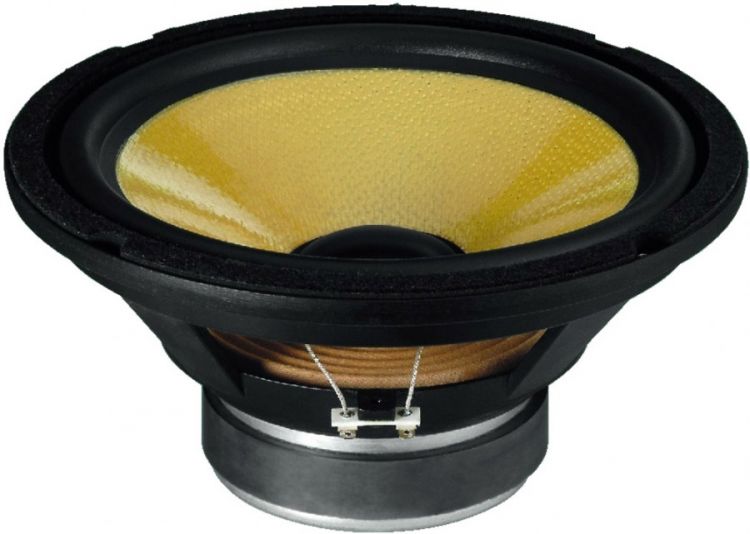

MONACOR SPH-250KE Top hi-fi bass speaker, 100 W, 8 O
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 250105640
EAN: 4007754064872
MPN: 0102380
Top hi-fi bass speaker, 100 W, 8 O Finely textured Kevlar cone Aluminium diecast basket... more
All information about the product:
"MONACOR SPH-250KE Top hi-fi bass speaker, 100 W, 8 O"
Top hi-fi bass speaker, 100 W, 8 O
- Finely textured Kevlar cone
- Aluminium diecast basket
- Long excursion
- A very deep bass in compact bass-reflex cabinets already
- In closed cabinets, a dry bass reproduction comfortable to listen to (particularly suitable for use in rooms of rumbling sound)
- For any hi-fi and high-end application
| Impedance (Z): | 8 O |

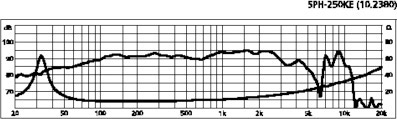

| Frequency range: | f3-3,000 Hz |
| Resonant frequency (fs): | 23 Hz |
| Power rating (RMS): | 100 W |
| Peak music power output (MAX): | 150 W |
| Sensitivity: | 90 dB/W/m |
| Suspension compl. (Cms): | 0.94 mm/N |
| Moving mass (Mms): | 45 g |
| Mech. Q factor (Qms): | 5.25 |
| Electr. Q factor (Qes): | 0.45 |
| Total Q factor (Qts): | 0.41 |
| Equivalent volume (Vas): | 204 l |
| DC resistance (Re): | 6.1 O |
| Force factor (BxL): | 9.40 Tm |
| Voice coil induct. (Le): | 0.7 mH |

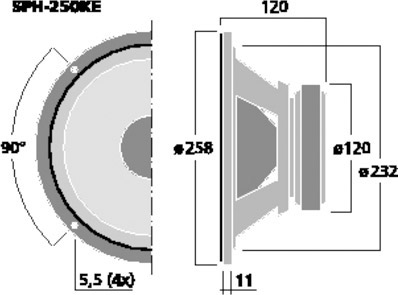

| Voice coil diameter: | Ø 50 mm |
| Voice coil former: | Kapton |
| Linear excursion (XMAX): | ± 4.75 mm |
| Eff. cone area (Sd): | 346 cm2 |
| Magnet weight: | 840 g + 50 g |
| Magnet diameter: | Ø 120 mm |
| Mounting cutout: | Ø 232 mm |
| Mounting depth: | 123 mm |
| Mounting hole diameter: | Ø 243 mm |
| Hole spacing X-axis: | 172 mm |
| Hole spacing Y-axis: | 172 mm |
| Dimensions: | Ø 258 mm x 123 mm |
| Outside diameter: | Ø 258 mm |
| Width: | Ø 258 mm |
| Depth: | 123 mm |
| Colour: | black/yellow |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 2.92 kg |
| Packing unit: | 1 |
| Type of speaker: | 10" |
| Packing dimensions (W x H x L): | 0.27 x 0.15 x 0.27 m |
| Gross weight: | 3.32 kg |
| Net weight: | 2.92 kg |
