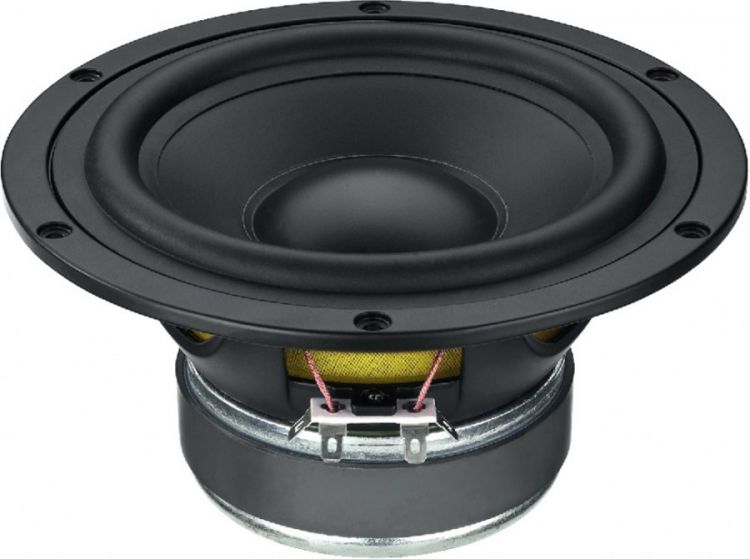

MONACOR SPH-6M Hi-fi bass speaker, 60 W, 8 O
€70.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 250122690
EAN: 4007754223040
MPN: 0105540
Hi-fi bass speaker, 60 W, 8 O High-quality hi-fi bass speaker of long excursion Damped... more
All information about the product:
"MONACOR SPH-6M Hi-fi bass speaker, 60 W, 8 O"
Hi-fi bass speaker, 60 W, 8 O
- High-quality hi-fi bass speaker of long excursion
- Damped low-resonance polypropylene cone
- Robust diecast aluminium basket of an elegant design with 6-hole screw connection
- Magnet system with drilled pole core and protruding rear pole plate
- Very well-suited for bass-reflex speaker systems
Klang+Ton 01/2014
“The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction.”
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)
HOBBY HiFi 02/2012
“Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz).”
| Impedance (Z): | 8 O |
| Frequency range: | f3-3,000 Hz |
| Resonant frequency (fs): | 39 Hz |
| Power rating (RMS): | 60 W |
| Peak music power output (MAX): | 120 W |
| Sensitivity: | 88 dB/W/m |
| Suspension compl. (Cms): | 0.78 mm/N |
| Moving mass (Mms): | 20 g |
| Mech. Q factor (Qms): | 2.26 |
| Electr. Q factor (Qes): | 0.35 |
| Total Q factor (Qts): | 0.30 |
| Equivalent volume (Vas): | 17.6 l |
| DC resistance (Re): | 6.33 O |
| Force factor (BxL): | 9.68 Tm |
| Voice coil induct. (Le): | 0.82 mH |
| Voice coil diameter: | Ø 37 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 4 mm |
| Eff. cone area (Sd): | 127 cm2 |
| Magnet weight: | 630 g |
| Magnet diameter: | Ø 100 mm |

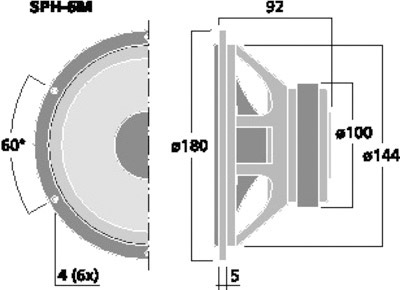

| Mounting cutout: | Ø 144 mm |
| Mounting depth: | 87 mm |
| Dimensions: | Ø 180 mm x 92 mm |
| Outside diameter: | Ø 180 mm |
| Width: | Ø 180 mm |
| Depth: | 92 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 2.005 kg |
| Packing unit: | 1 |
| Type of speaker: | 6.5" |
| Packing dimensions (W x H x L): | 0.2 x 0.13 x 0.2 m |
| Gross weight: | 2.235 kg |
| Net weight: | 2.005 kg |
