Adam Hall 19" Parts PCL 10 - Power Conditioner with rack lighting
- Reliable protection against over-voltage and impulse voltage
- Effective high frequency filter against interference

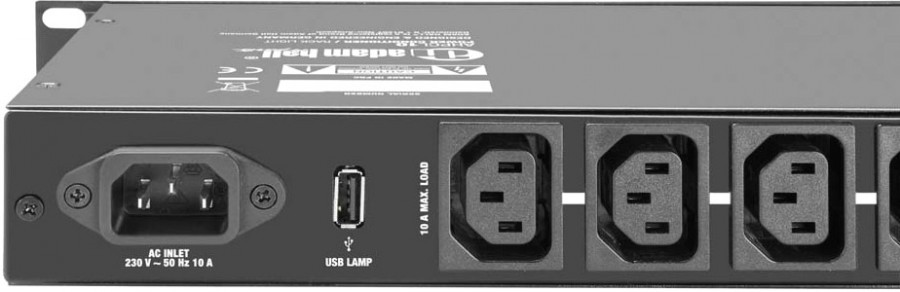

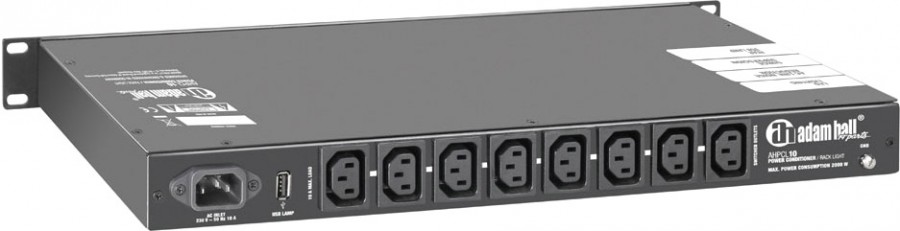

- Central power supply with 8 switchable IEC sockets

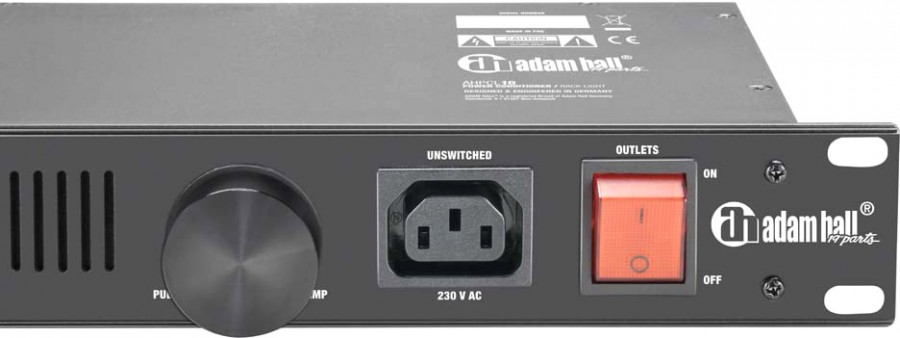

- Unswitched convenience socket on the front

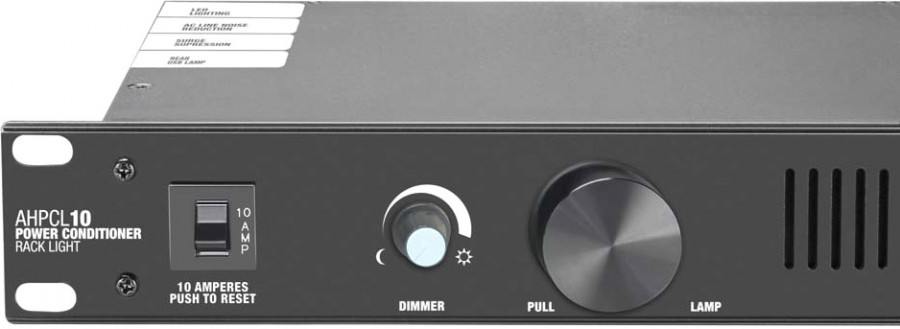

- Resettable circuit breaker on the front panel
- 2 pull-out LED rack lights with dimmer

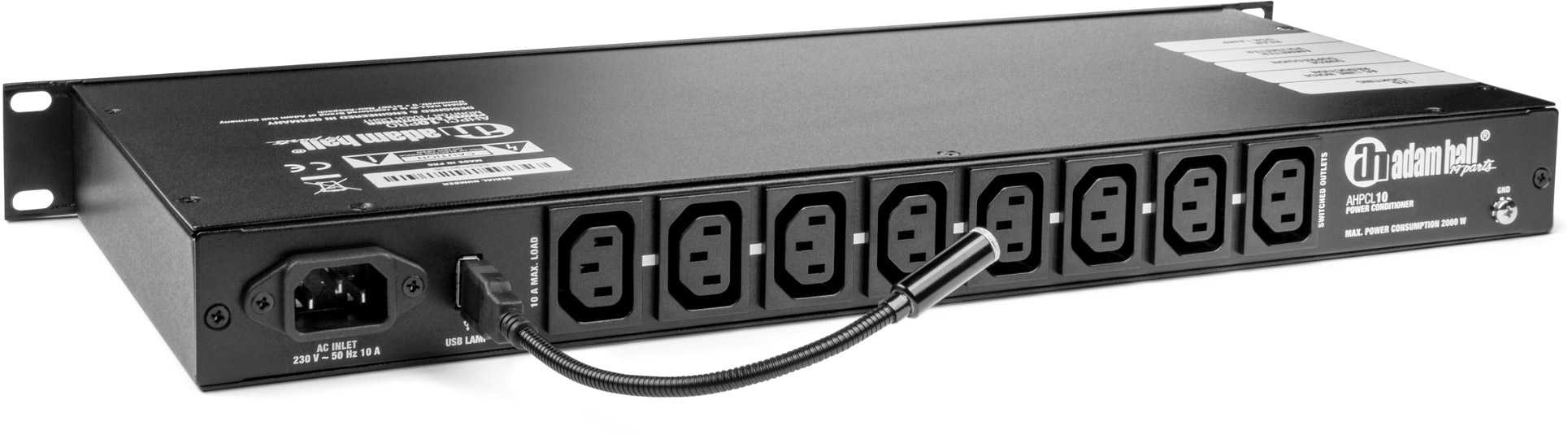

- LED gooseneck lamp with USB connection for the lighting of the rack
In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.
The AH PCL 10 also has two pull-out rack lights with 5 LEDs, dimmer and automatic on and off switch, as well as a detachable LED gooseneck lamp with USB connection for the lighting of the rack.

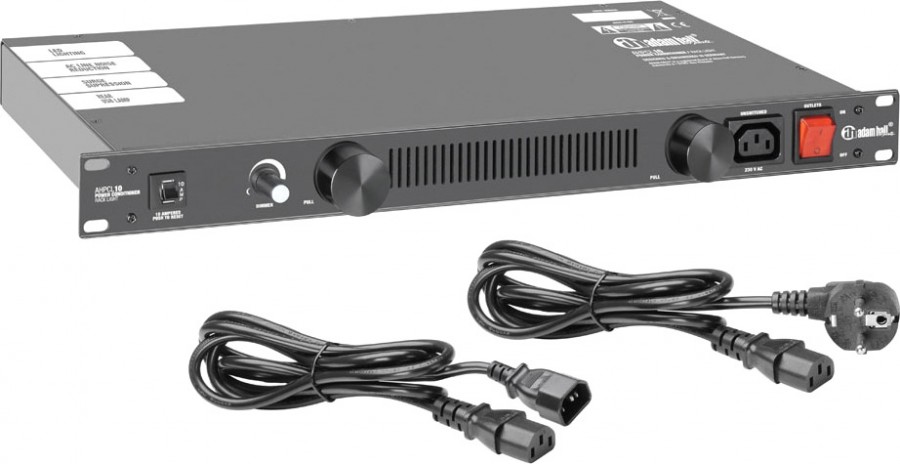

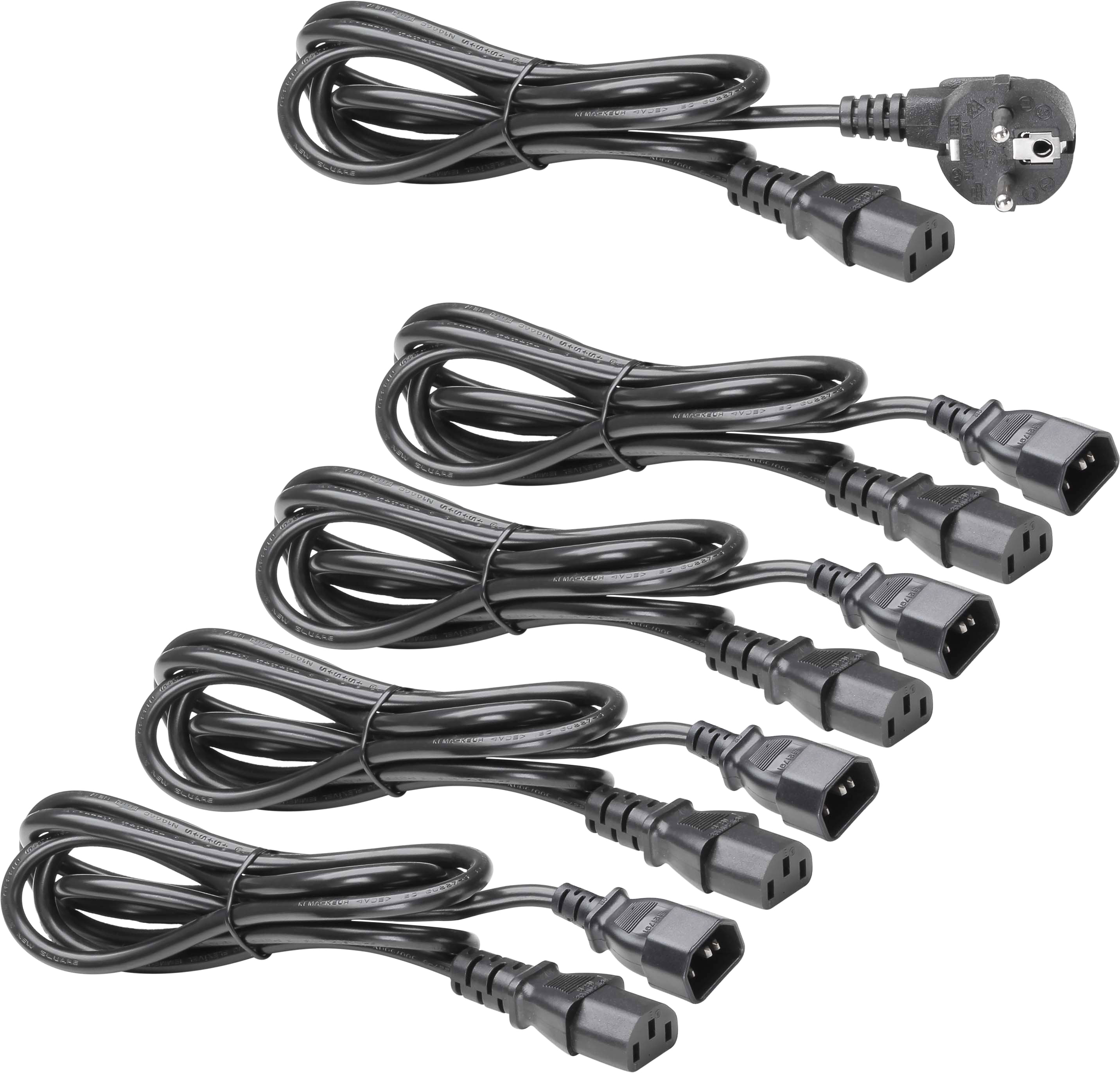

All AH power conditioners are supplied with four IEC connection cables.
Technical data:| Product type: | 19" rack mains socket strips |
| Type: | 19" / 1 U |
| Number of outlets (IEC C14): | 9 |
| Input voltage: | 230 V |
| Nominal Impedance: | max 10 A |
| Protection Against Impulse Voltage: | neutral conductor to earth |
| Protection Against Impulse Voltage: | outer conductor to neutral |
| Protection Against Impulse Voltage: | outer conductors to protection light |
| Response Time: | 1 ns |
| Max. Surge Current: | 6000A (8x20 µs pulse) |
| Max. Surge Energy: | 70 joules per contact |
| Noise Cancelling: | |
| Mains connector: | IEC mains cord |
| Fuse: | 10 A |
| Width: | 482 mm |
| Height: | 44.5 mm |
| Depth: | 190 mm |
| Weight: | 2,95 kg |
| Features: | incl. telescopic rack light |
| Features: | including 4 power cords |
